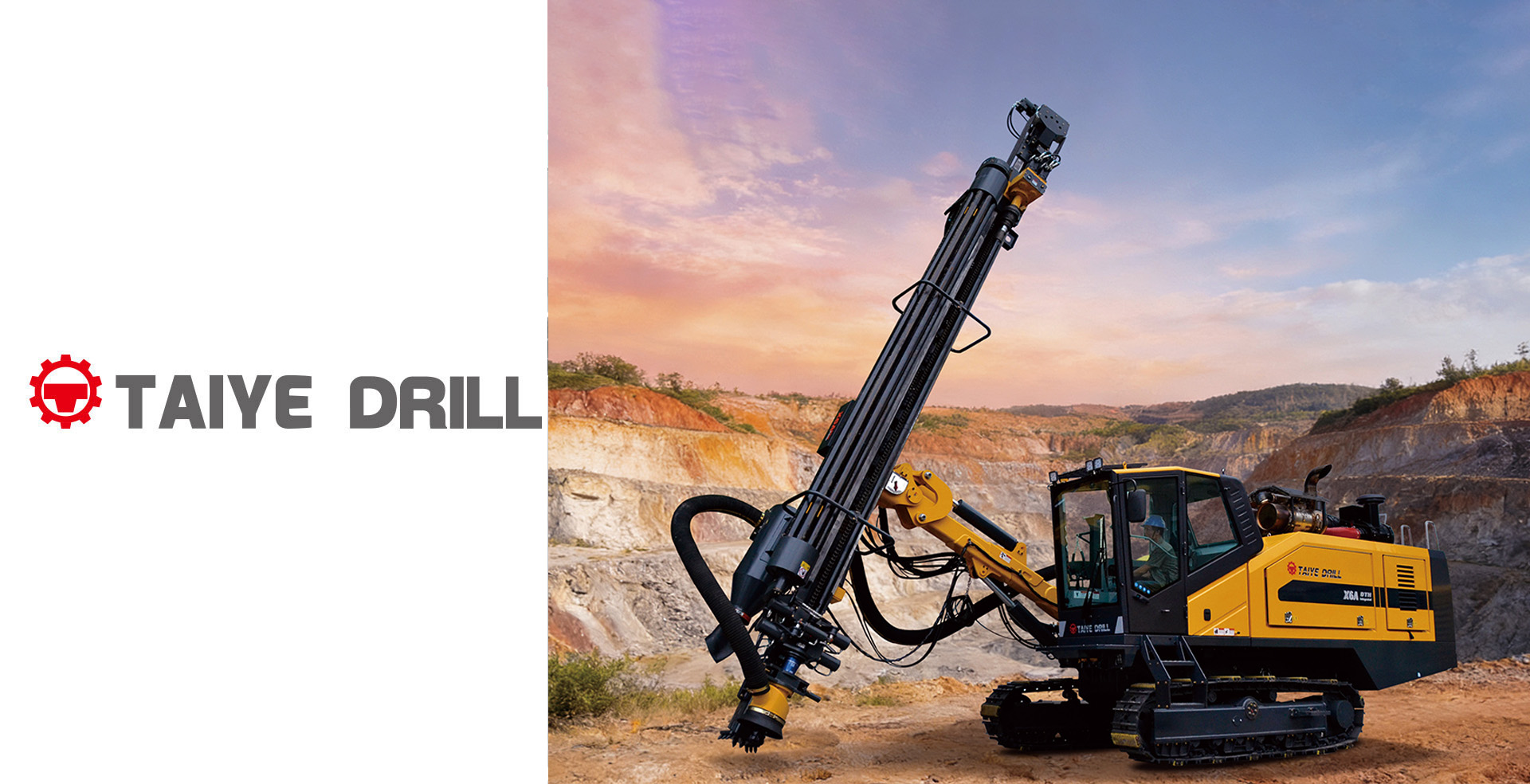

TAIYE-X6A full hydraulic crawler mounted surface blasting drilling rig

Name: TAIYE-X6A full hydraulic crawler mounted surface blasting drilling rig
Brand: Xuanhua Taiye Drilling Machinery Co, Ltd.

The drilling hole range of TAIYE-X6A-DTH is 138-203mm.Working air pressure is 21bar,air displacement is 25m³/min.It is suit for open-pit mining,quarries etc. It features high efficiency, durable,comfortable and safety.

GET A QUOTE

1.Two stage screw air compressor
Equipped with Atlas Copco two-stage screw air compressor, the output gas volume is 25 m3/min. When matching with a 5” hammer, the working pressure can be up to 23 bar, and when matching with a 6" hammer, the working pressure can be up to 21 bar.
2.Turbocharged water-cooled engine
Equipped with DCEC turbocharged water-cooled engine,power is strong, it is energy conservation and environmental protection.It has a maintenance free automatic cleaning system that can extend the service life of the engine.

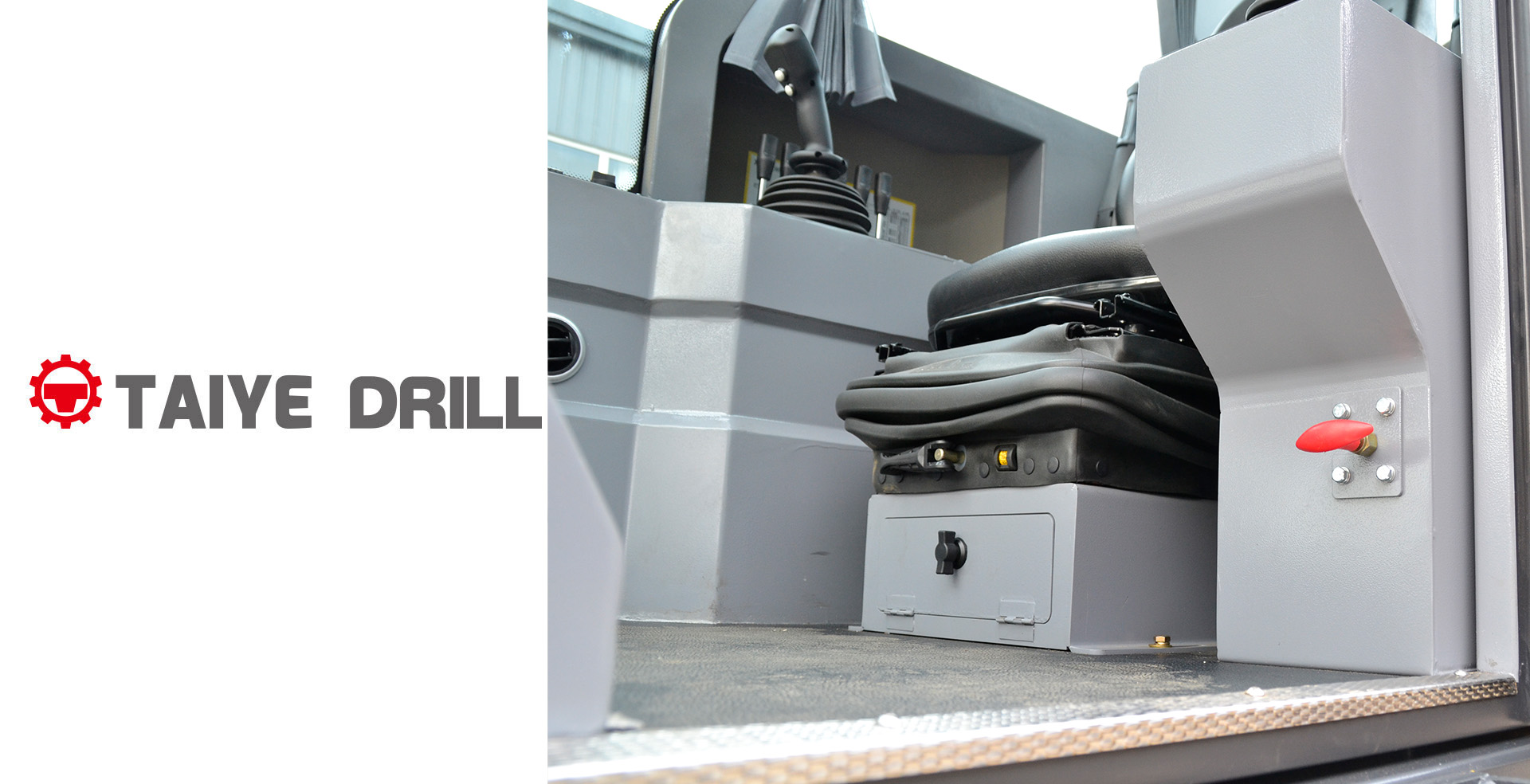

3.Cab

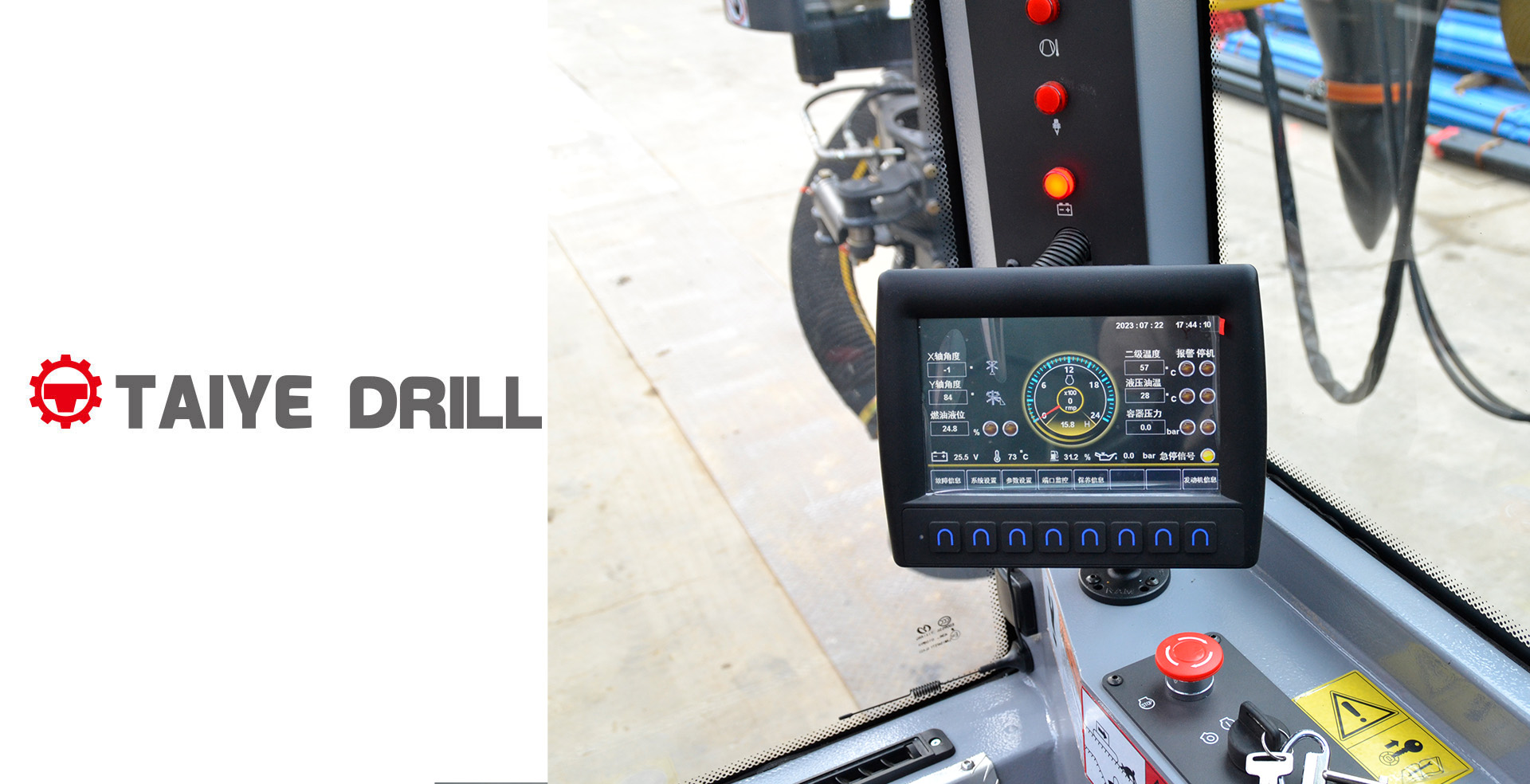

The cab is equipped with air conditioning, ergonomic operating system and reverse image,providing a comfortable and safe working environment.
4.automatic rod changer
The automatic rod changing drilling method has high safety and can reduce labor costs and intensity.When using 89*5m drill rods, the drilling depth can reach 30 meters; When using 102*4m drill rods, the hole depth can reach 24 meters.

TAIYE-X6A full hydraulic crawler mounted surface blasting drilling rig Drilling Rig

Model		TAIYE-X6A-DTH
Drilling parameters	Hole range	138-203mm
Drilling parameters	Rod size	895000/1024000mm
Propulsion parameter	Rotary speed	0-100rpm
	Rotary torque	3400/4300/5500N.m
	Lifting force	30KN
	Lifting speed	75m/min(max)
Air compressor	Manufacturer	Atlas Copco
	F.A.D	25m³/min
	Pressure	21bar
Engine Power	Manufacturer	DCEC CUMMINS
Engine Power	Power	372kW（National stageIII）/333kW optional
Dimension	1200028003850mm
Weight	20800kg
