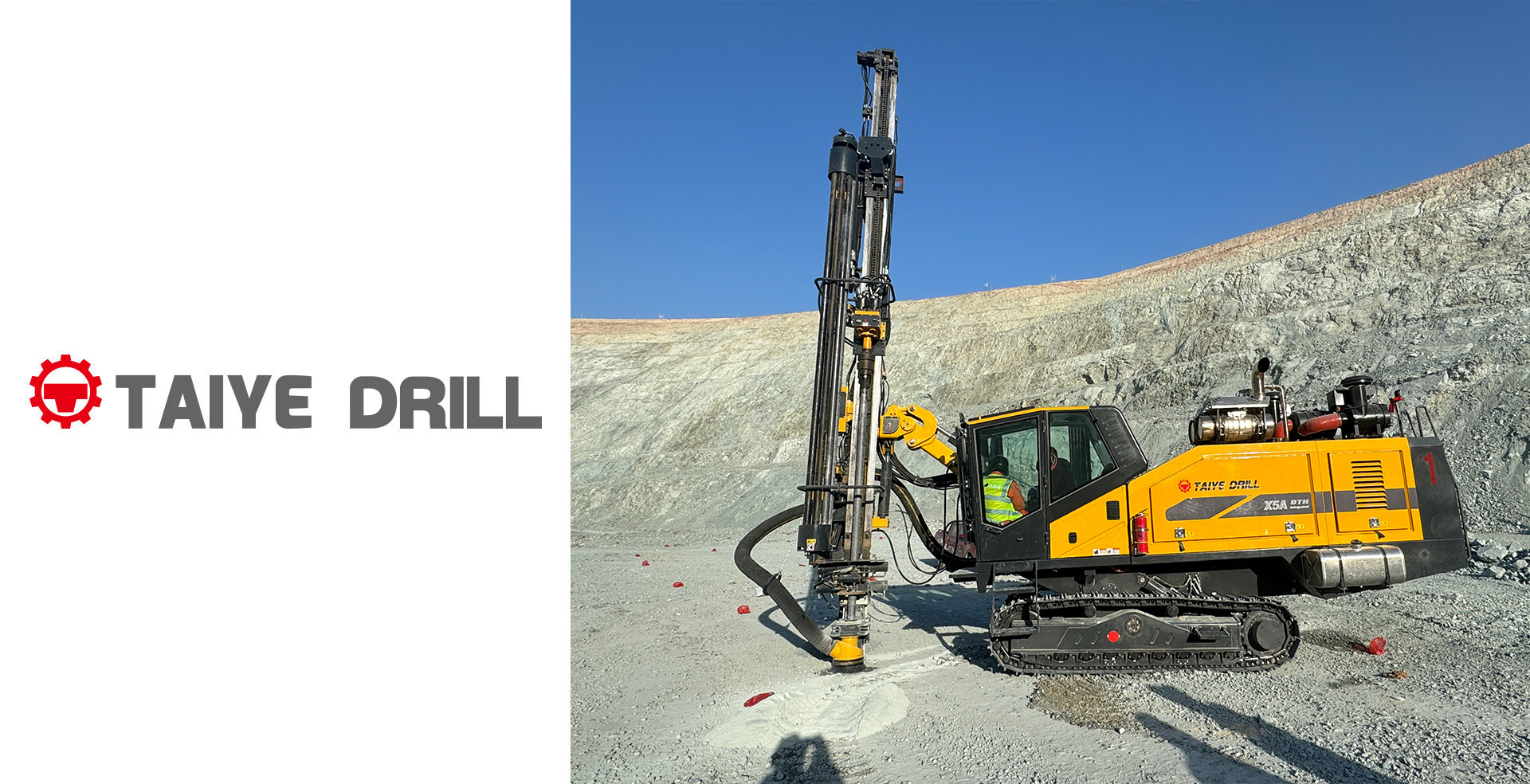

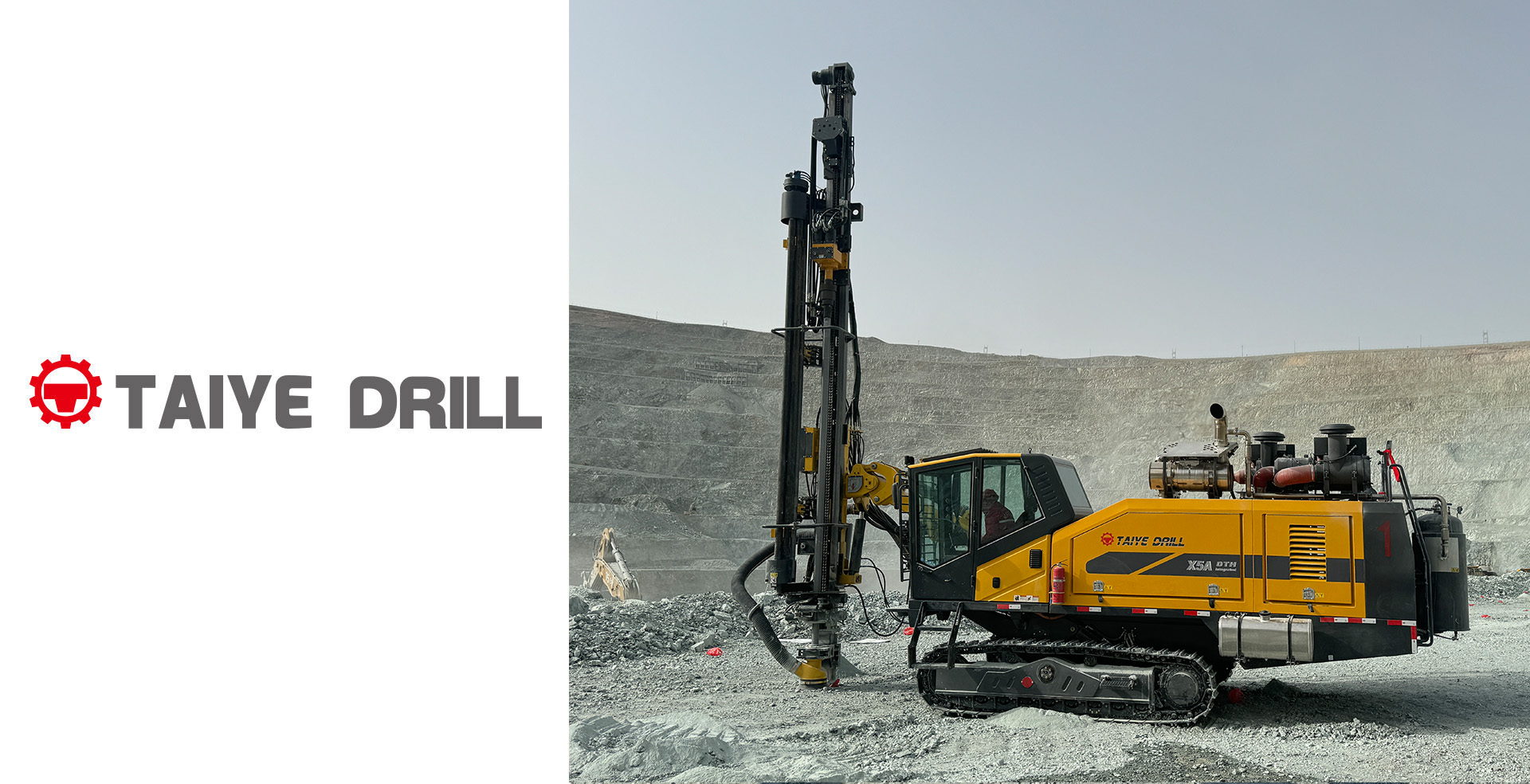

română X5 is a full hydraulic surface drilling rig with cab, automatic rod changer and dust removal system. It is suit for open-pit mining. It is a DTH rig machine features high efficiency, durable, easy to maintain and high reliability.
X5 is a full hydraulic surface drilling rig with cab, automatic rod changer and dust removal system. It is suit for open-pit mining. It is a DTH rig machine features high efficiency, durable, easy to maintain and high reliability.
High torque,4.5"-5.5" DTH hammer is reconmmended. It can achieve best woking state by adjusting rotate speed and torque. Keep high efficient penetration.
Automatic rod changer system improves safety, reduces labor cost and labor intensity. A total of six 4-meter long drill pipe, drilling depth up to 24 meters. That means you save time, and the longer the project lasts, the more you save.
Spacious cab with hydraulic pilot handle, air conditioner and other optional equipment, offers a more comfortable operation experience to you. Indoor noise is below 85db.
The X5S has good mobility and safety, equipped with high torque walking motor, can drill holes through rough terrain. Sturdy straight arm design and central location offer wide view to operators.
| Parameters | |||
| Model | TAIYE-X5-DTH | ||
| Hole range (mm) | 138-152 | Carriage swing(°) | L/R 92° |
| Rod size(mm) | 89×5000/4000 | Carriage pitching(°) | 0-142 |
| Rod number | 5+1 | Dust collector motor speed（Rpm） | 3500 |
| Torque(N.m) | 3400-4300 | Filter area(㎡) | 30 |
| Rotary speed（Rpm） | 0-100 | Air compressor manufacturer | Atlas Copco SULLAIR |
| Propulsion stroke(mm) | 4860/5860 | Air compressor flow(m³/min) | 19 19.5 |
| Propulsion/Lifting force（KN) | 30（X5A) 20 (X5S) | Working pressure(Mpa) | 2.0 |
| Propulsion/Lifting speed(m/min) | 75 | Engine manufacturer | DCEC Cummins |
| Walking speed(Km/h) | 0-3.5 | Emission standard | National stage-III/IV |
| Body floating(°) | ±10 | Engine power(kW) | 264 |
| Gradeability(°) | 25 | Fuel tank capacity(L) | 700（X5A) 600 (X5S) |
| Ground clearance(mm) | 420 | ||
| Boom pitching(°) | Up50/Down24 | Dimension(mm) | 12000×2800×3850 |
| Boom swing(°) | Left20/Right30 | Weight(Kg) | 20800（X5A) 18000 (X5S) |
