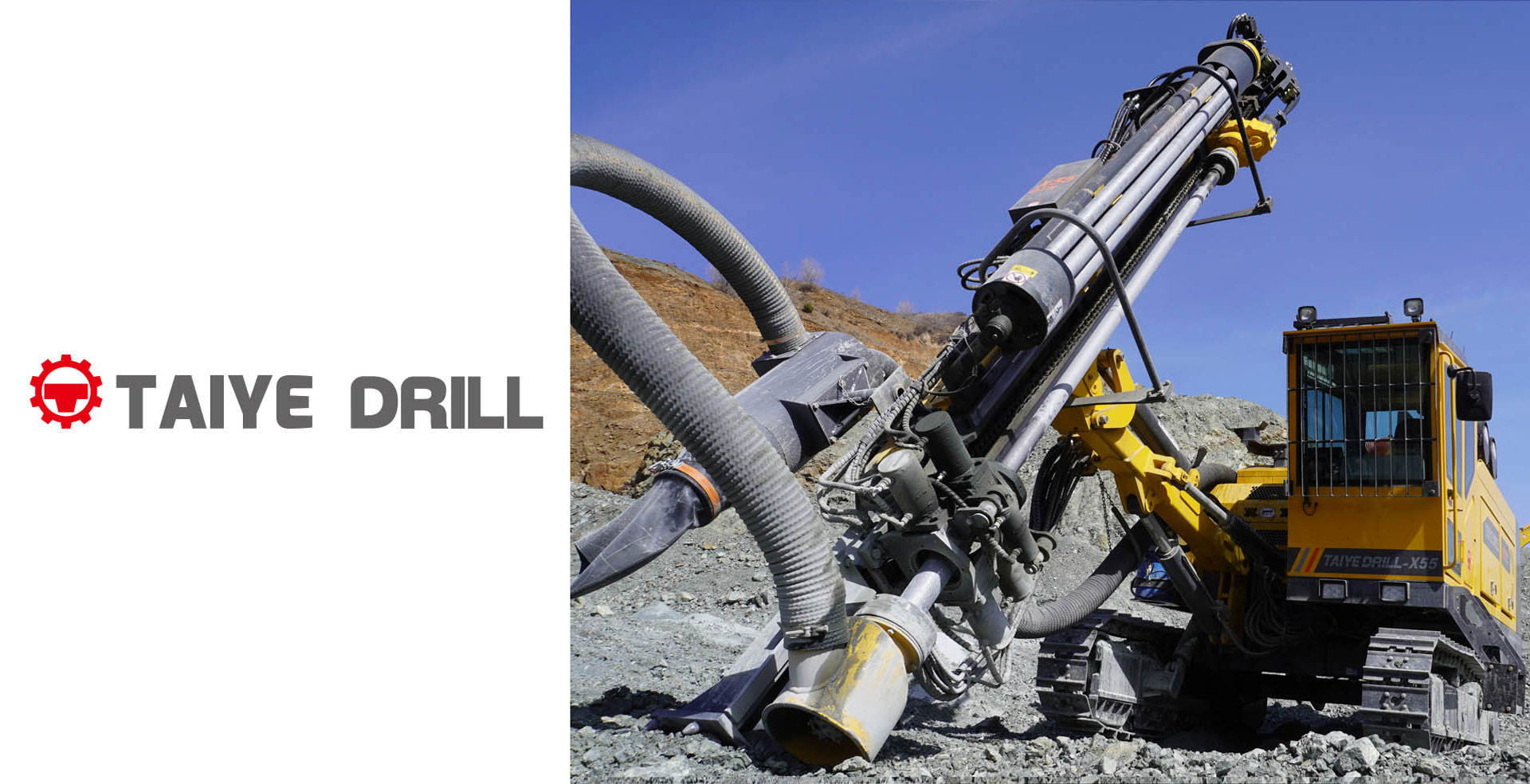

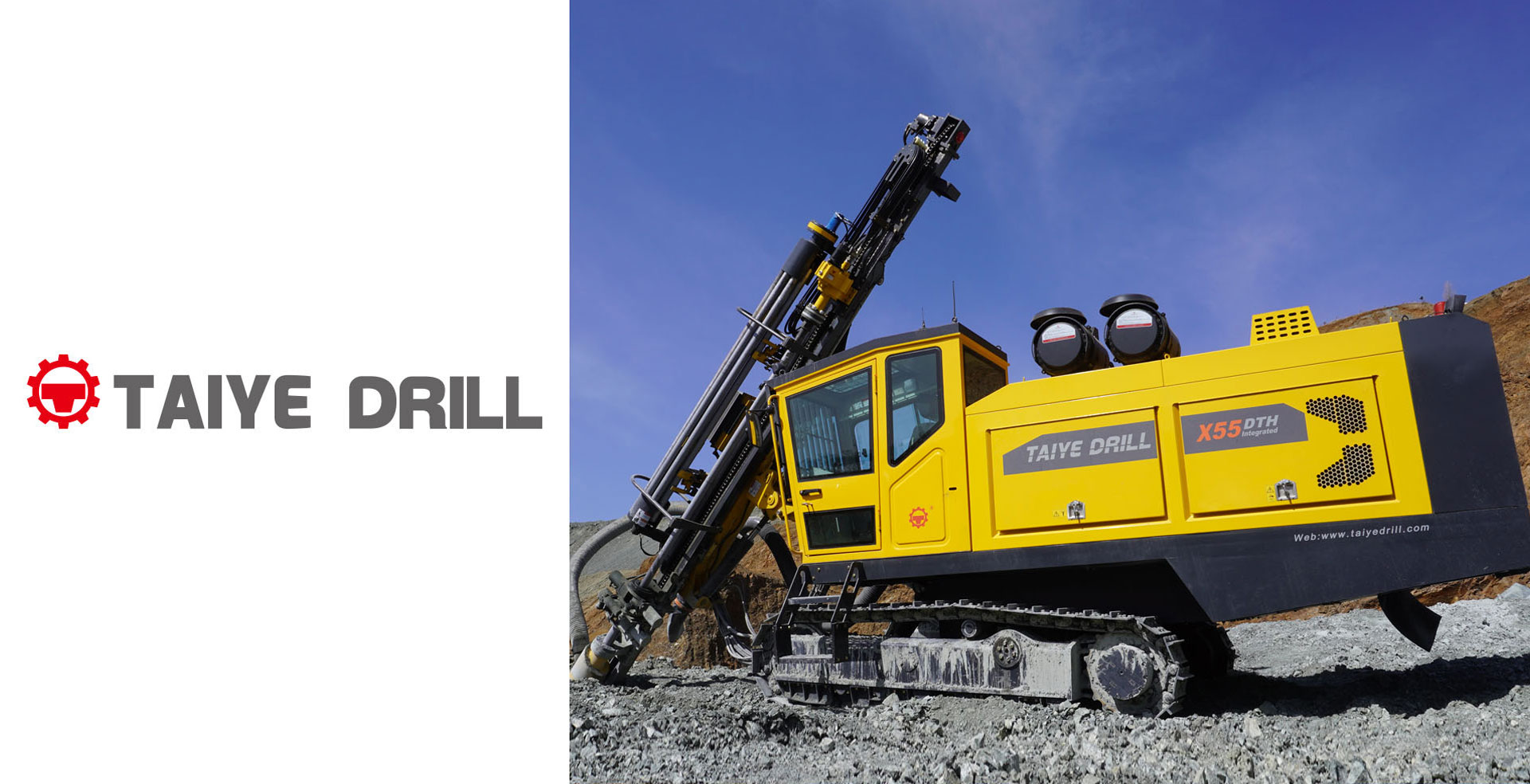

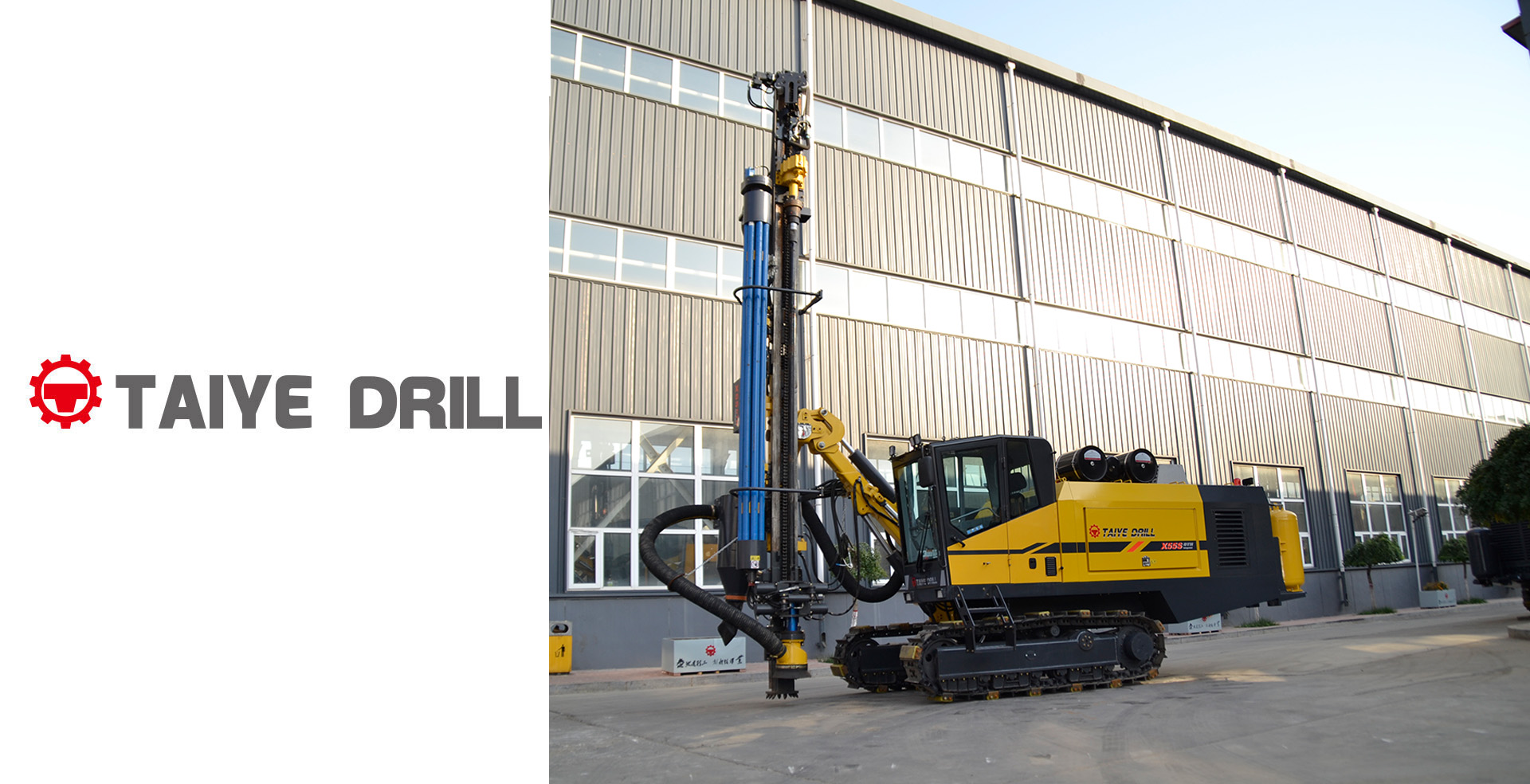

TAIYE-X55 Crawler-mounted Remote Control Integrated Drilling Rig

TAIYE-X55 Crawler-mounted Remote Control Integrated Drilling Rig adopts a new design concept, integrating drilling, gas supply, and power systems. It uses high-end electro-hydraulic control technology to match the overall power from power-pump-load-air supply. Combining with the solid mechanical structure manufacturing level of Taiye Company, this series of DTH boring machine realizes the integration of man, machine, and working conditions, and perfectly combines the reliability, flexibility, comfort, and safety of the product. It is a trustworthy surface Down-The-Hole drilling machine.


  • 1. Load sensing variable pump

    1. Load sensing variable pump

    The drilling and walking operation system of the drilling rig adopts load-sensitive variable pump with hydraulic control multi-way valve and hydraulic control pilot handle. The system is perfectly matched, and the control is sensitive and accurate, energy saving, and cost reduction.

  • 2. Engine

    2. Engine

    It is matched with Yuchai engine, the engine displacement is 8.424L, and the two-stage working speed is 1200/1850rpm, respectively. The idle speed and the drilling speed are matched with right gear, which reduces fuel consumption compared with the previous single-speed design.


  • 3. Automatic Rod-changer

    3. Automatic Rod-changer

    The drilling rig is equipped with a 3-meter automatic rod-changer, which can  advance 3-meter drill rods at a time. The operation is simple and flexible, which minimizes auxiliary work time, reduces auxiliary manpower, eliminates safety hazards, and directly reduces investment costs.


  • 4. Remote Control System

    4. Remote Control System

    Equipped with a remote control system, it is suitable for remote operation of the drilling rig within a range of 100 meters, and is suitable for dangerous working conditions.


Parameter of TAIYE-X55 Crawler-mounted Remote Control Integrated Drilling Rig


TAIYE-X55Hole range90-152mm
EngineTypeYUCHAI YC6L310-H300
Power228
Fuel tank capacity550L

Propulsion
Stroke4115mm
Fast pushing speedMax 60m/min
Lifting force20KN
Rotary PowerRotate speed0-140 Rpm
Torque2800N.m
RodDiameter76mm
Lenght3000mm
Number5+1
Dimension
9.5m*2.5m*3.6m
Weight
14500±300kg
Grade ability
25°
CompressorManufacturerSullivan-Palatek
Flow19.2m³/min
pressur2.0Mpa


Drill Rig
