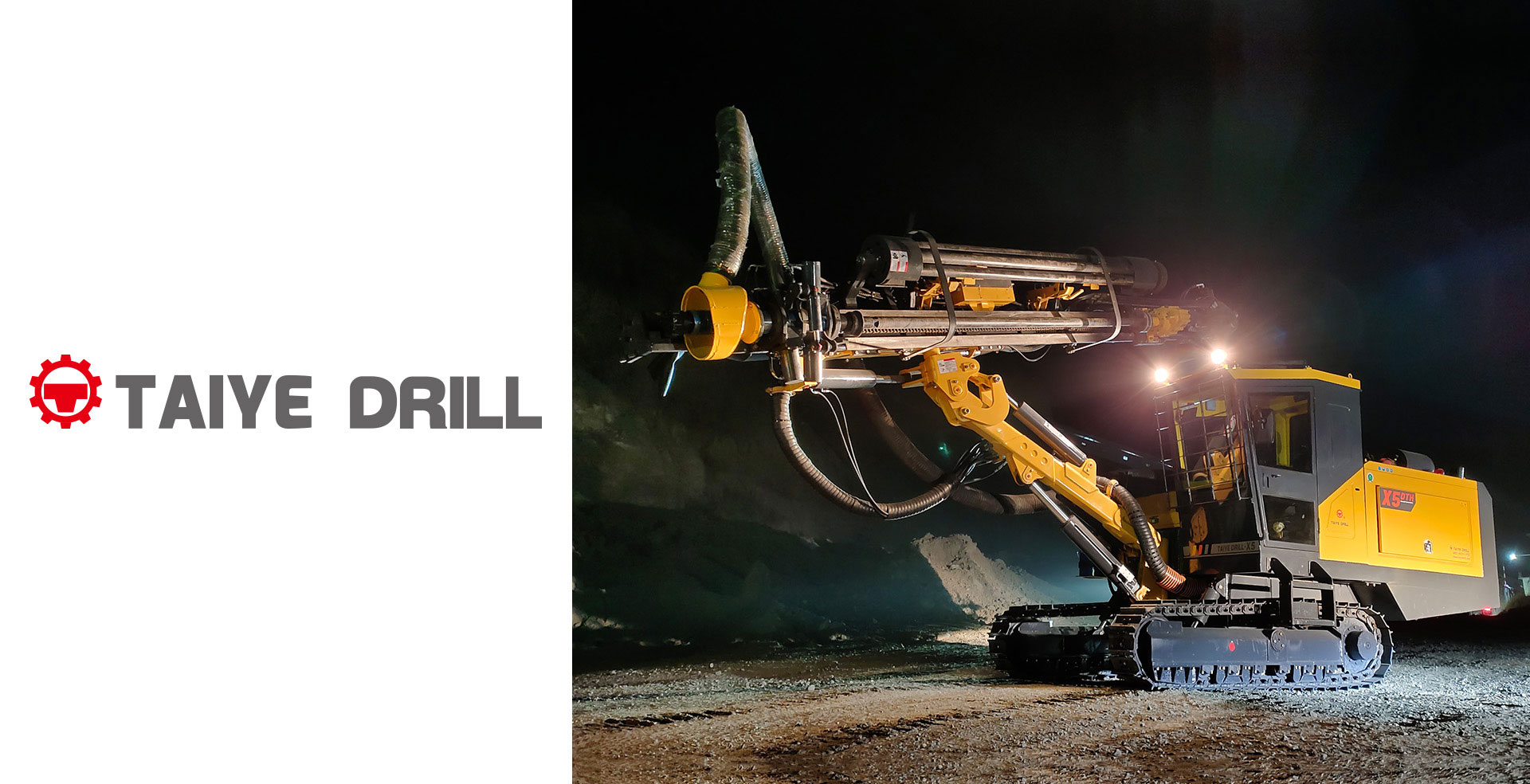

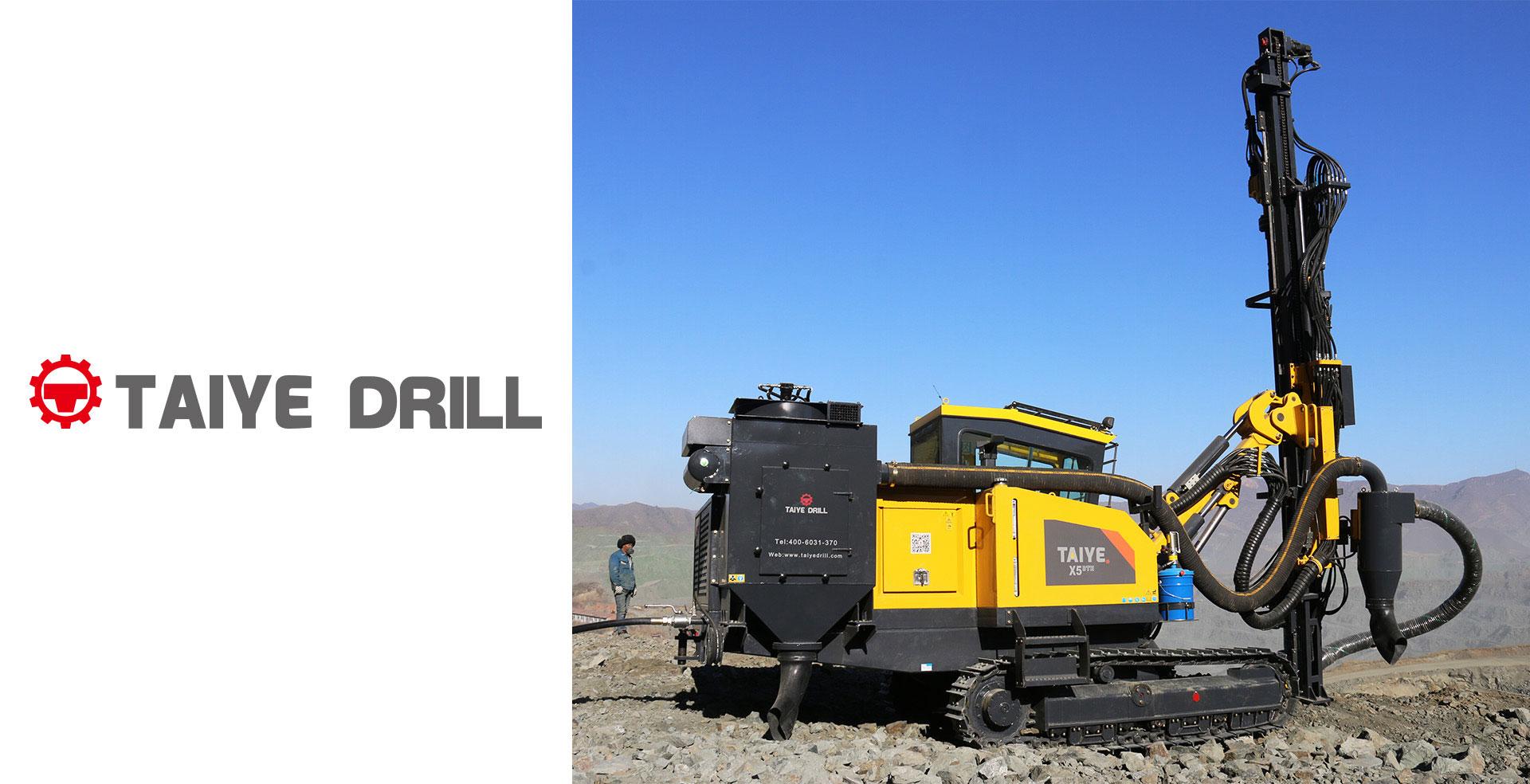

TAIYE-X5-DTH Separated Crawler Mounted Automatic Rod Change System Surface Hydraulic Drill Rig with Cab

TAIYE-X5 drilling rig calculation optimization design, development and application of power matching and load adaptation system, realize the power matching of the power system from power to pump to load, effectively reduces the energy consumption of the whole machine, and ensures the performance and high reliability of the whole machine. It is suitable for large and medium open-pit mines such as cement, metallurgy, coal mine and quarries.

  • 1. Automatic connecting and unloading rod device of split hydraulic surface down-the-hole drilling rig

    1. Automatic connecting and unloading rod device of split hydraulic surface down-the-hole drilling rig

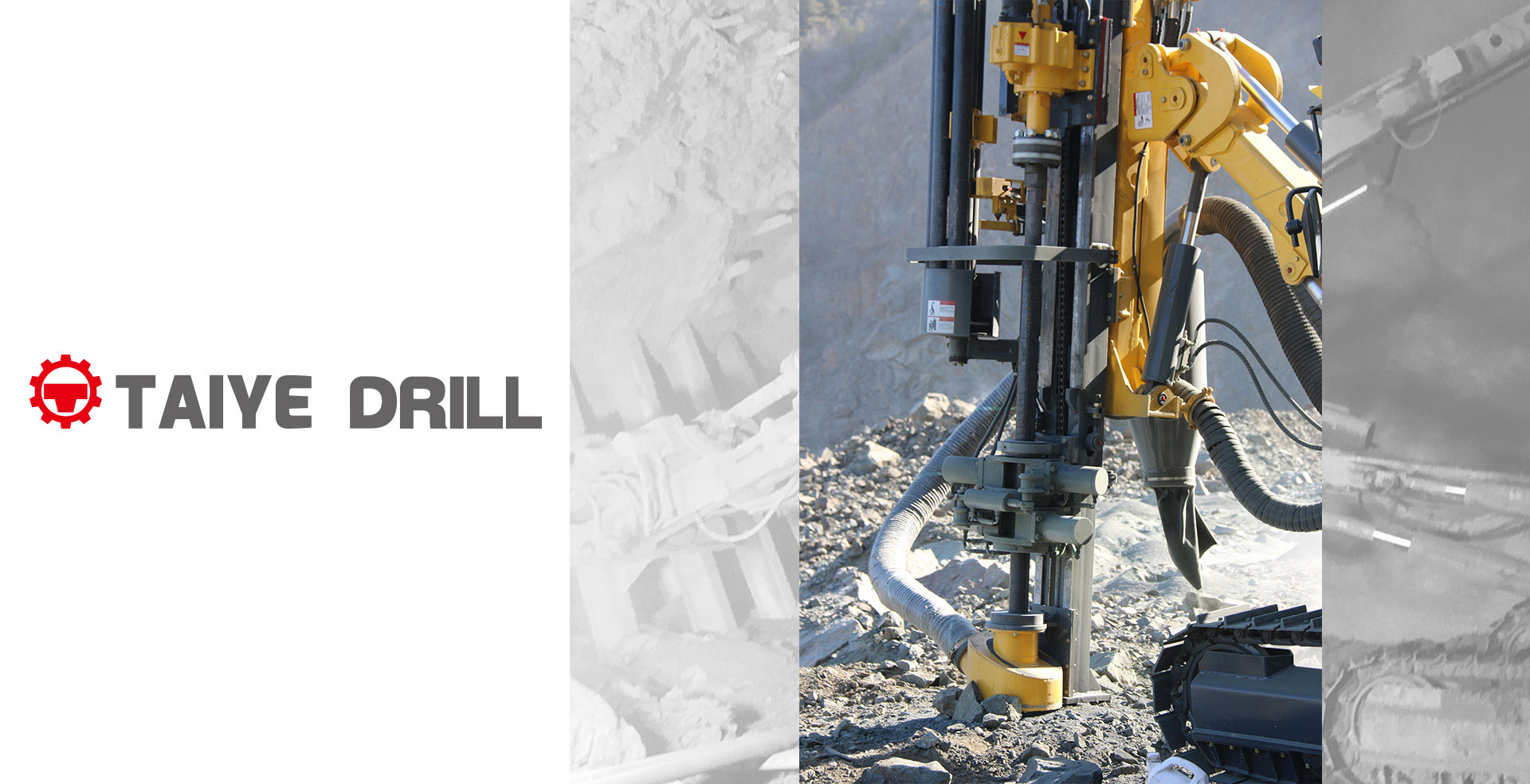

    The drill rod storage device can accommodate five drill rods, which can achieve the deepest drilling depth over 18 meters with a 3-meter drill rod. The automatic connecting and unloading rod device means that the overall project time can be saved.


  • 2. Cab of split hydraulic surface down-the-hole drilling rig

    2. Cab of split hydraulic surface down-the-hole drilling rig

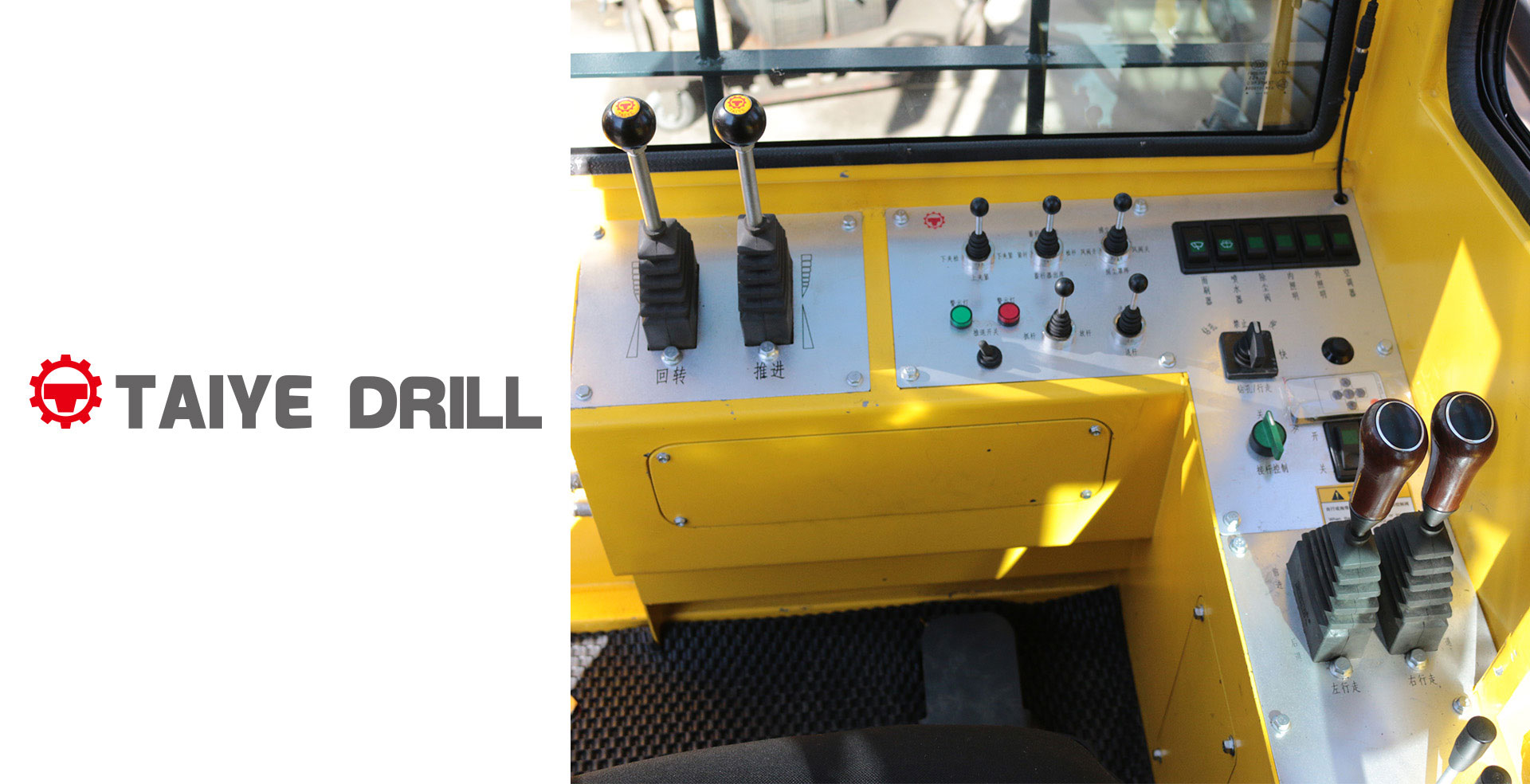

    The safe and comfortable cab provides the operator with a broad vision, and the operator can safely support and control the drilling state, and directly carry out pipe change and drilling operations.


  • 3. Off-road capability

    3. Off-road capability

    The floating articulated chassis can realize(±15 degree)self-adaptive floating, and the maximum climbing ability can reach 30 degree.


Parameter of TAIYE-X5-DTH Separated Crawler Mounted Automatic Rod Change System Surface Hydraulic Drill Rig with Cab


Drilling hole diameter115-165mm
Working pressure1.38-2.46Mpa
Turning torque3300N.m
Turning speed0-80Rpm
Lifting force18KN
Sliding frame swingLeft 33°/Right 44°
Sliding frame pitching106.5°
Drill boom swingLeft/Right 35°
Drill boom pitchingHorizontal 20°/51°
Grade ability30°
Engine ManufacturerYuChai Diesel, etc
Rated Power92kw
Dimensions7595*2190*3253mm
Weight9000kg

Drill Rig
