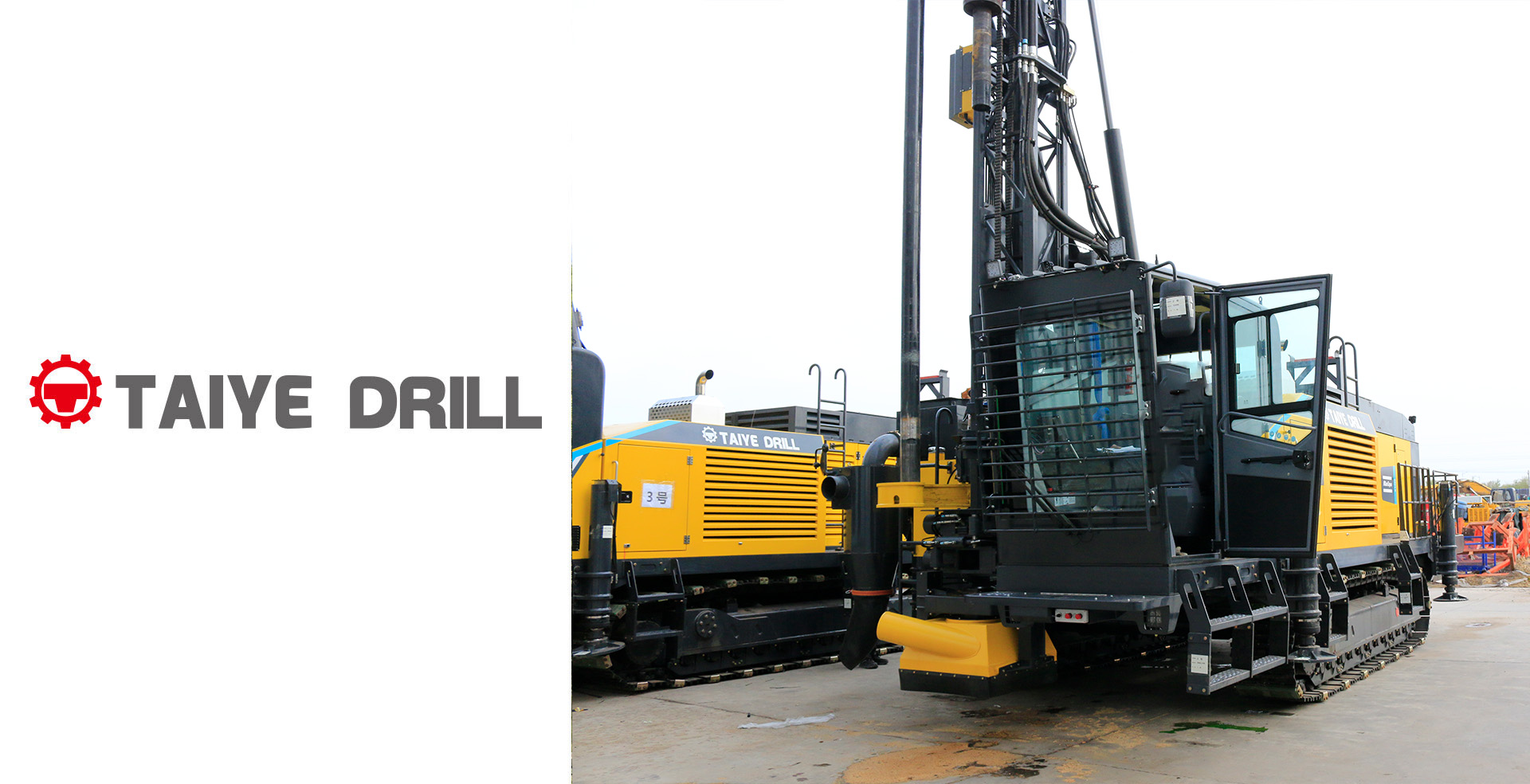

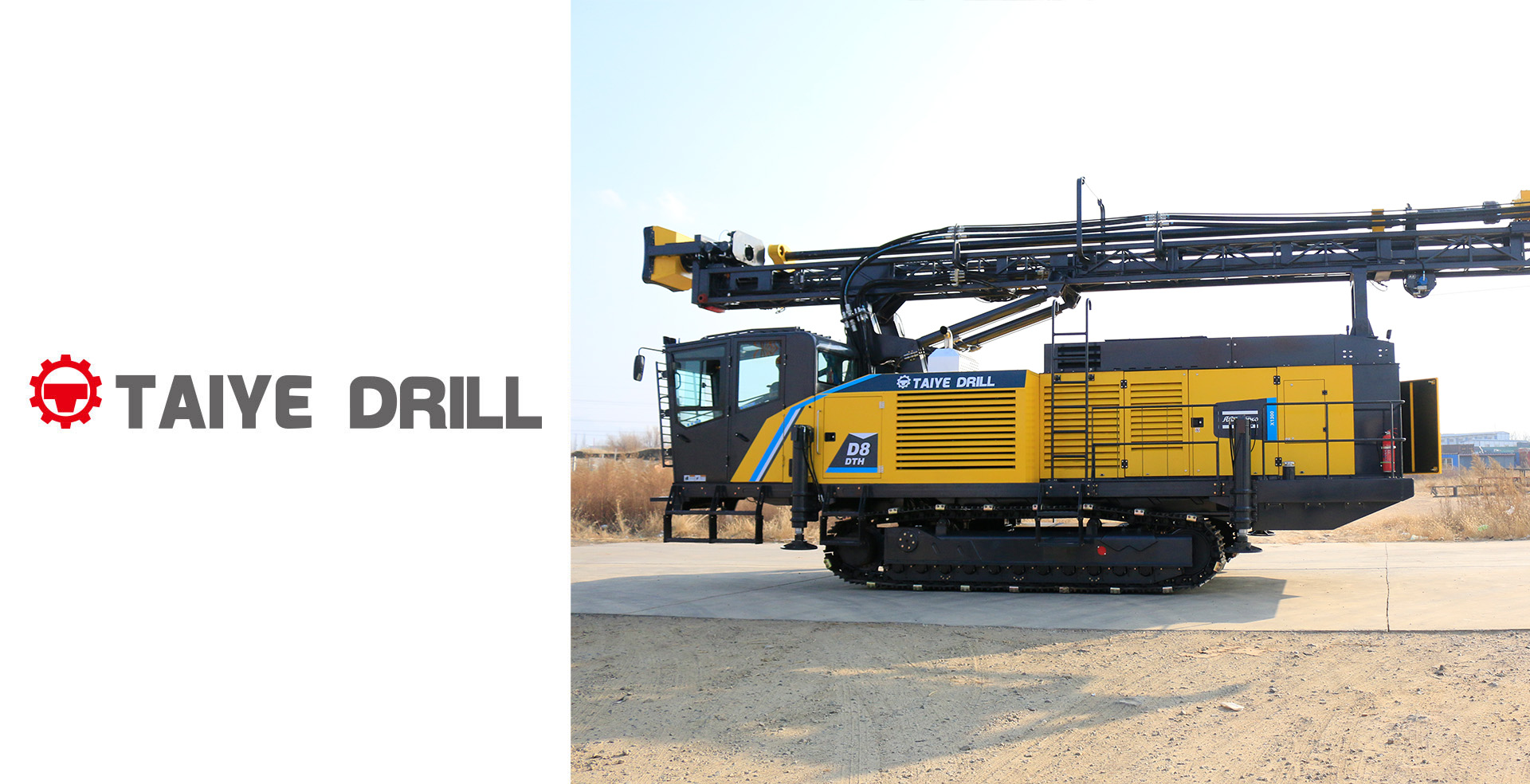

TAIYE-D8-DTH Full Hydraulic Crawler Mounted Large Diameter Blast Hole Surface Down-the-hole Drill Rig

TAIYE-D8-DTH is an efficient hydraulic integrative drilling rig, which is suit for high-level and large-bore open-pit blasting operation with various rock hardness.


Diesel and diesel-electric dual power suit for different mine choices. Reasonable rotating speed and feed systems are designed for different rock features to ensure high drilling efficiency.

The machine designed by requiring hole diameter and depth, which accurately set engine and compressor and exert maximum impact frequency of DTH impactor to accomplished the ideal drilling economy.


High operating rotating speed, large axial-load cutting drilling system were designed, which based on the working requirement related to soft rock. Matching medium or low-pressure compressor to achieve drilling demand which needs to be faster and more economic.

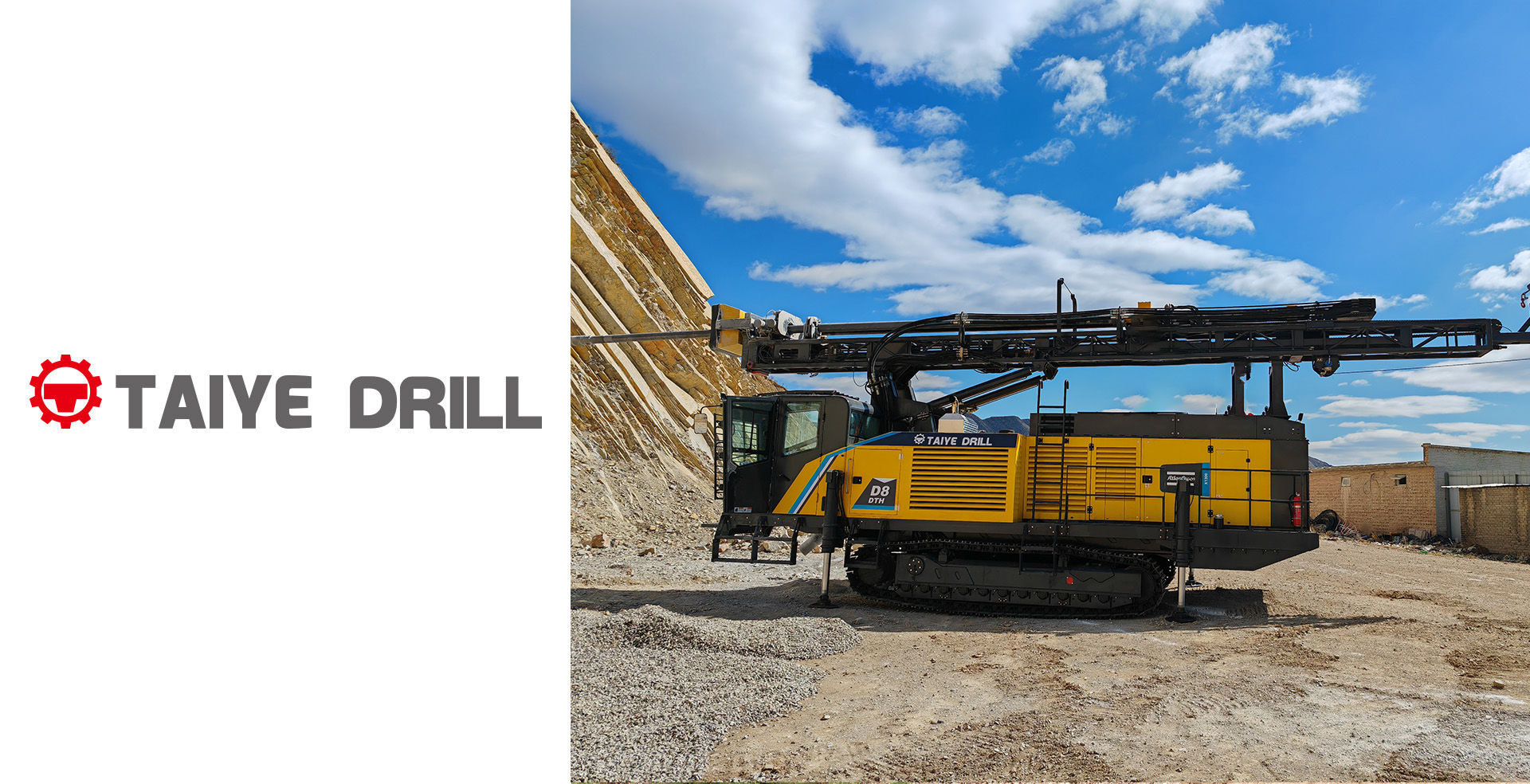

It has a high drilling frame structure and a four-point hydraulic expansion leg suitable for large-scale mining, which has excellent ground adaptability.


  • 1. Cab of full hydraulic surface down-the-hole drilling rig

    Our Full hydraulic surface down-the-hole drilling rig has a perfect combination:

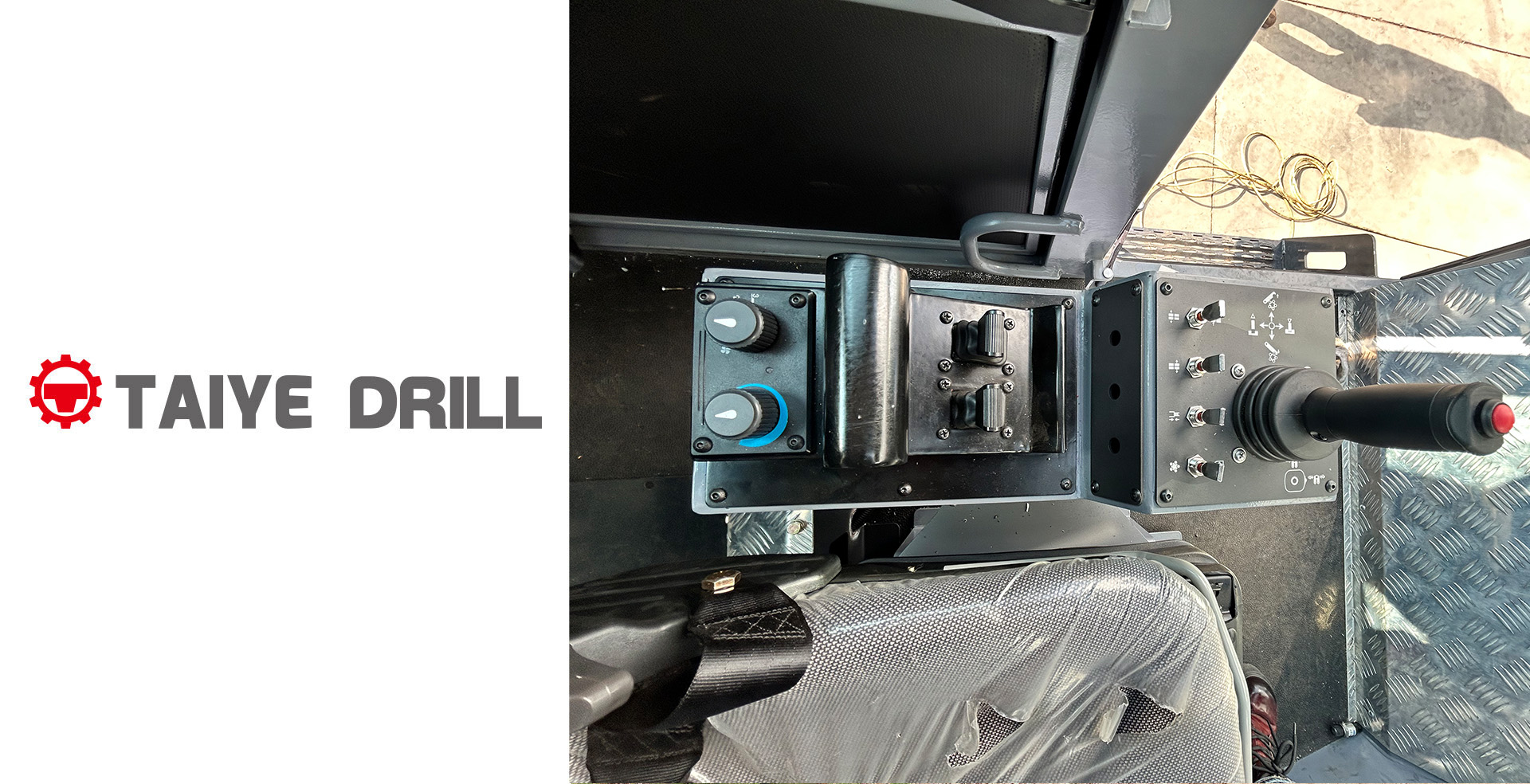

    1. Cab of full hydraulic surface down-the-hole drilling rig

    The cab provides safe operation environment for operators,intensive design of electronic buttons and hydraulic handles with reasonable layout.


  • 2. Automatic rod change device of full hydraulic surface down-the-hole drilling rig

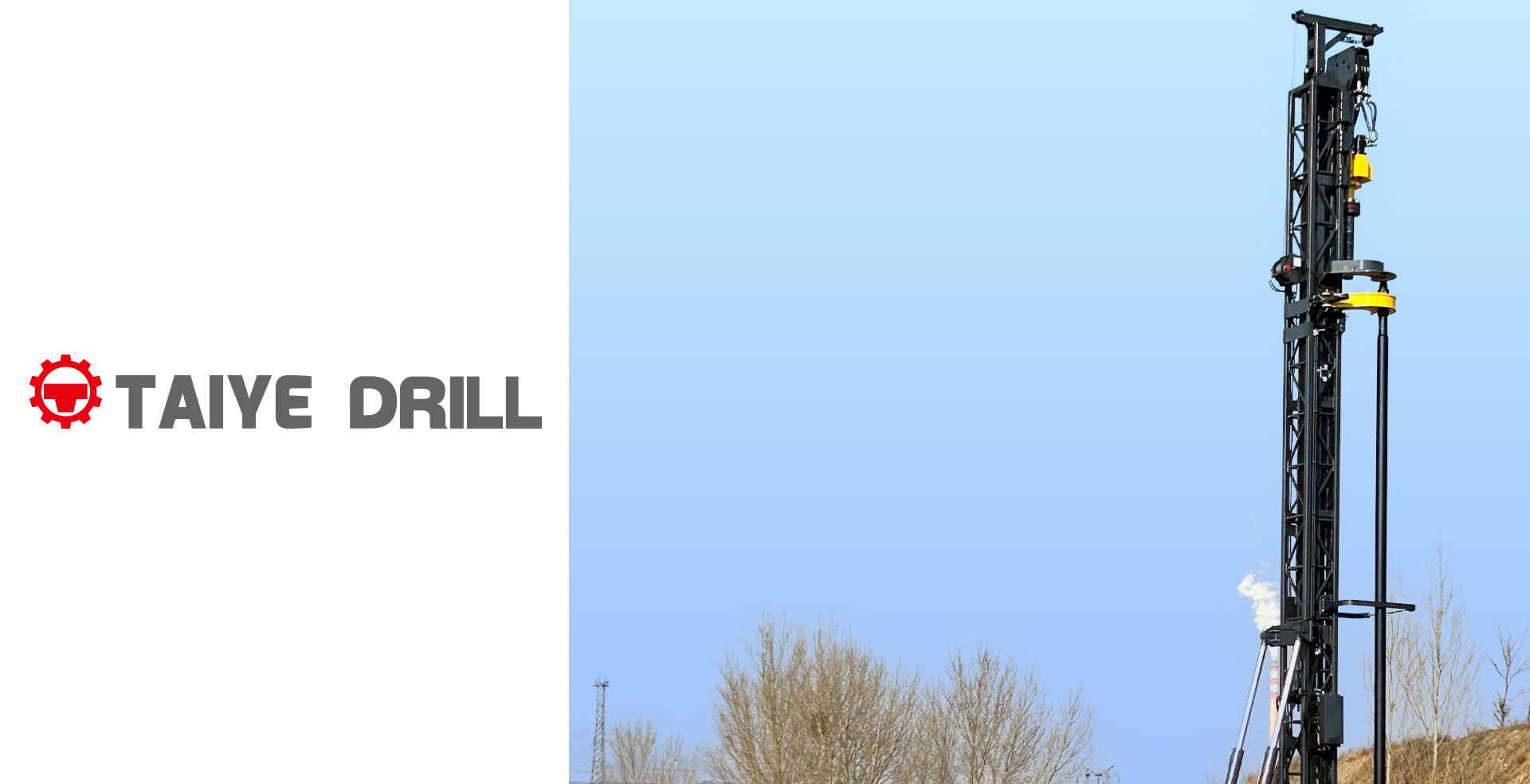

    2. Automatic rod change device of full hydraulic surface down-the-hole drilling rig

    The automatic drill rod library is equipped with bionic manipulator and rotary drill rod storage. An operator can complete the work of changing rods and drilling holes, reducing the difficulty of operation, saving labor, to achieve the high efficiency and reliability performance.


  • 3. Dust removal system of full hydraulic surface down-the-hole drilling rig

    3. Dust removal system of full hydraulic surface down-the-hole drilling rig

    Two-stage dry dust removal system or high-pressure water dust removal system can effectively reduce dust and maintain a clean working environment.


  • 4. Two-stage screw compressor of full hydraulic surface down-the-hole drilling rig

    4. Two-stage screw compressor of full hydraulic surface down-the-hole drilling rig

    Can be equipped with a variety of international brands(Sullair, Airman, Sullivan Palatek, Doosan, Gardner Denver...)of two-screw compression host, to ensure a higher impact frequency, and a good slag effect.


Parameter of TAIYE-D8-DTH Full Hydraulic Crawler Mounted Large Diameter Blast Hole Surface Down-the-Hole Drill Rig


Technical ParameterD8
Drilling  hole diameter178-255mm
Drill rods133*8900/133*9000mm
Maximum hole depth18000mm
Compressor power354Kw/1850Rpm
Compressor pressure2.4Mpa
displacement31.2m³/min
Drill Car Engine Power132Kw/2200Rpm
Turning speed0-80Rpm
Turning torque6190N.m
Lifting force60KN
Dimensions13900*2950*3500mm
Weight30000kg
Dust removal systemTwo dust removal schemes (dry or wet) for users to selection
