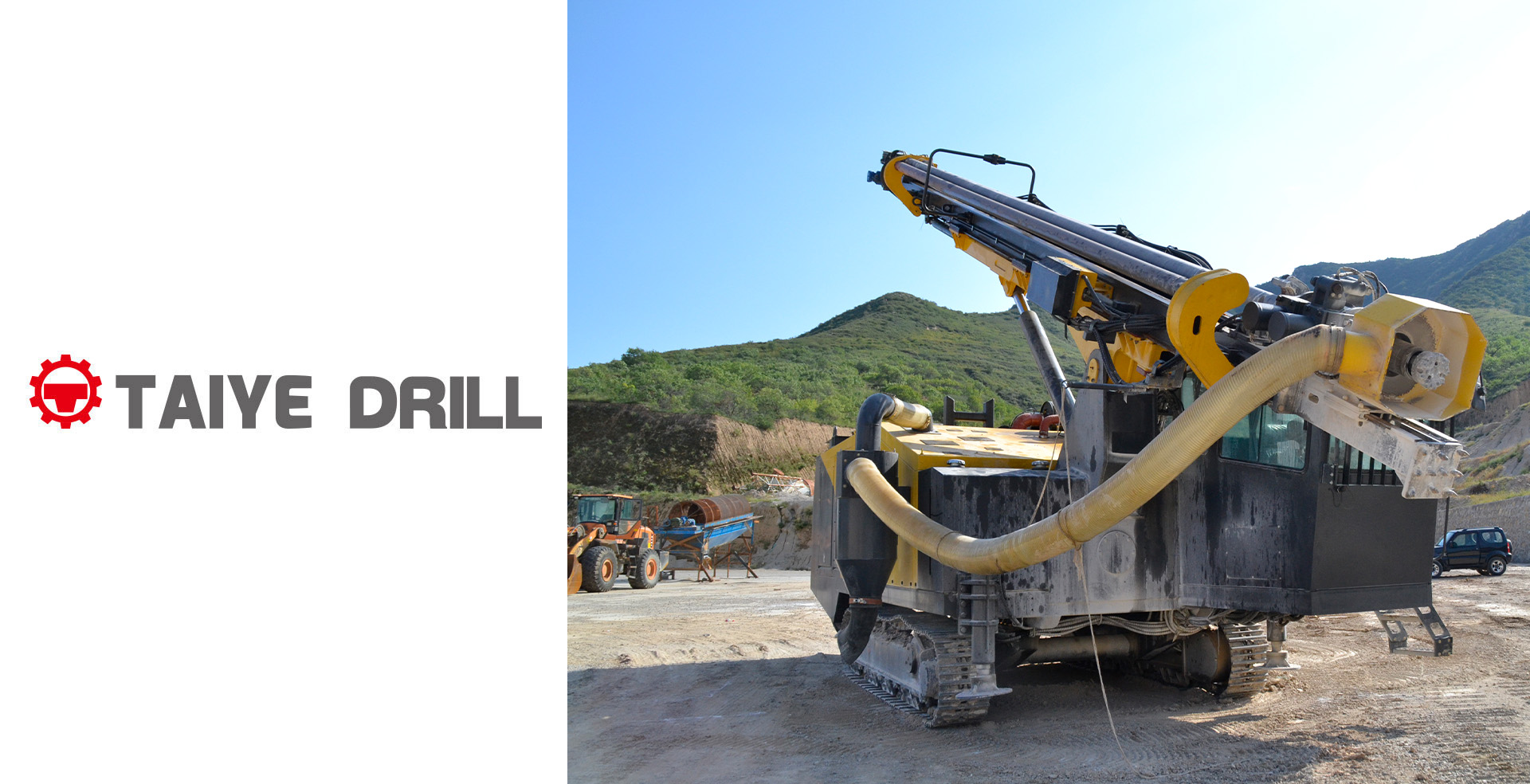

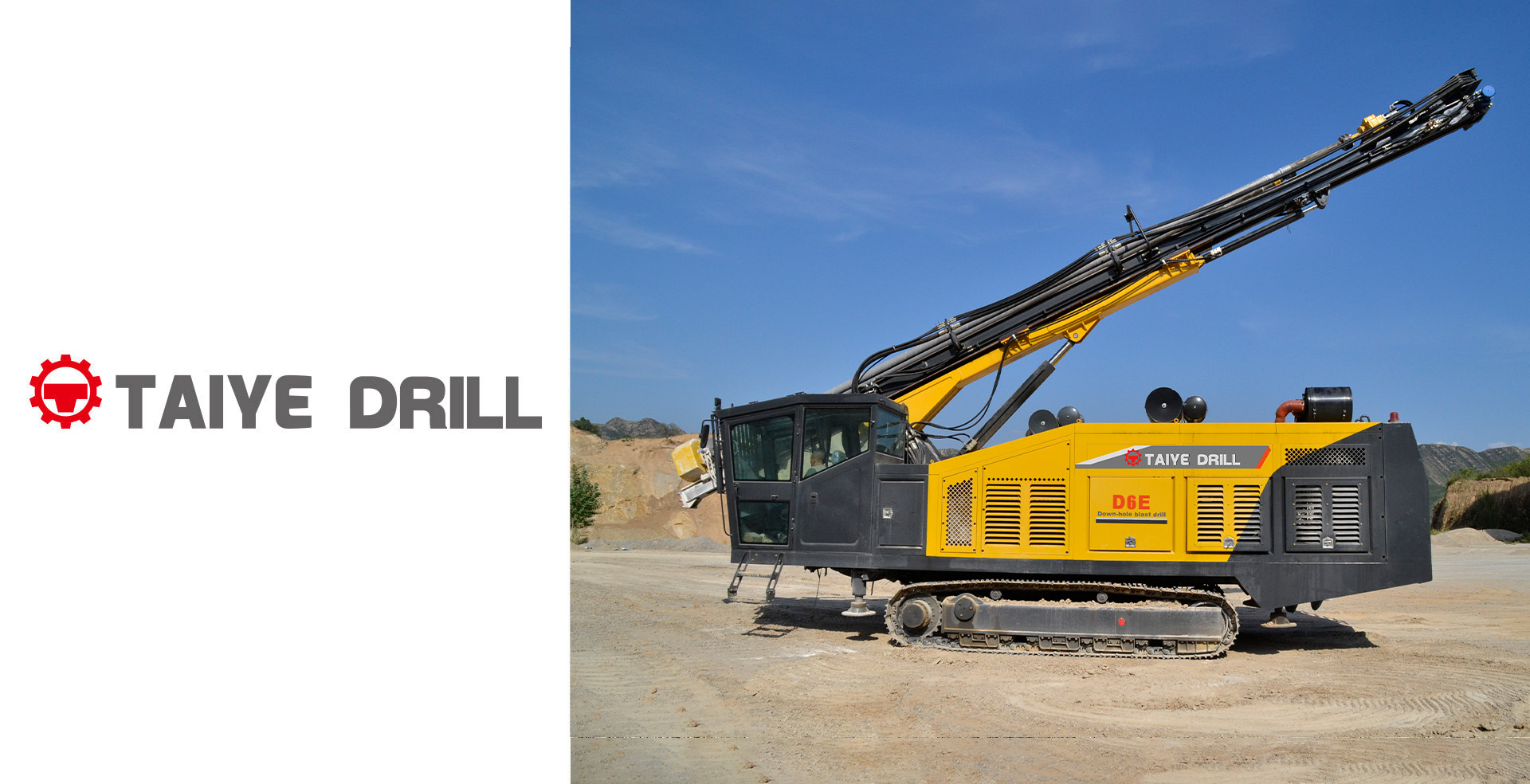

TAIYE-D6-DTH Full Hydraulic Crawler Mounted Large Diameter Blast Hole Surface Down-the-Hole Drill Rig

TAIYE-D6-DTH is a crawler-mounted high-efficiency fully hydraulic integrated drilling rig. It uses diesel and diesel-electric hybrid power to adapt to the hardness of medium-soft to medium-hard rocks. It's applicable to all kinds of open-pit mines, quarries and other high ladder slope pre-crack penetration engineering.


This rig adopts the high carriage structure design and screw air compressor. The main components are from international famous manufacturers, including diesel engines, hydraulic components, combined with the world's advanced manufacturing technology and quality assurance system to ensure the high reliability of drill rig.


The rig's track chassis is sturdy and durable, and the four-point hydraulic telescopic outriggers keep the rig at a high level of drilling accuracy.

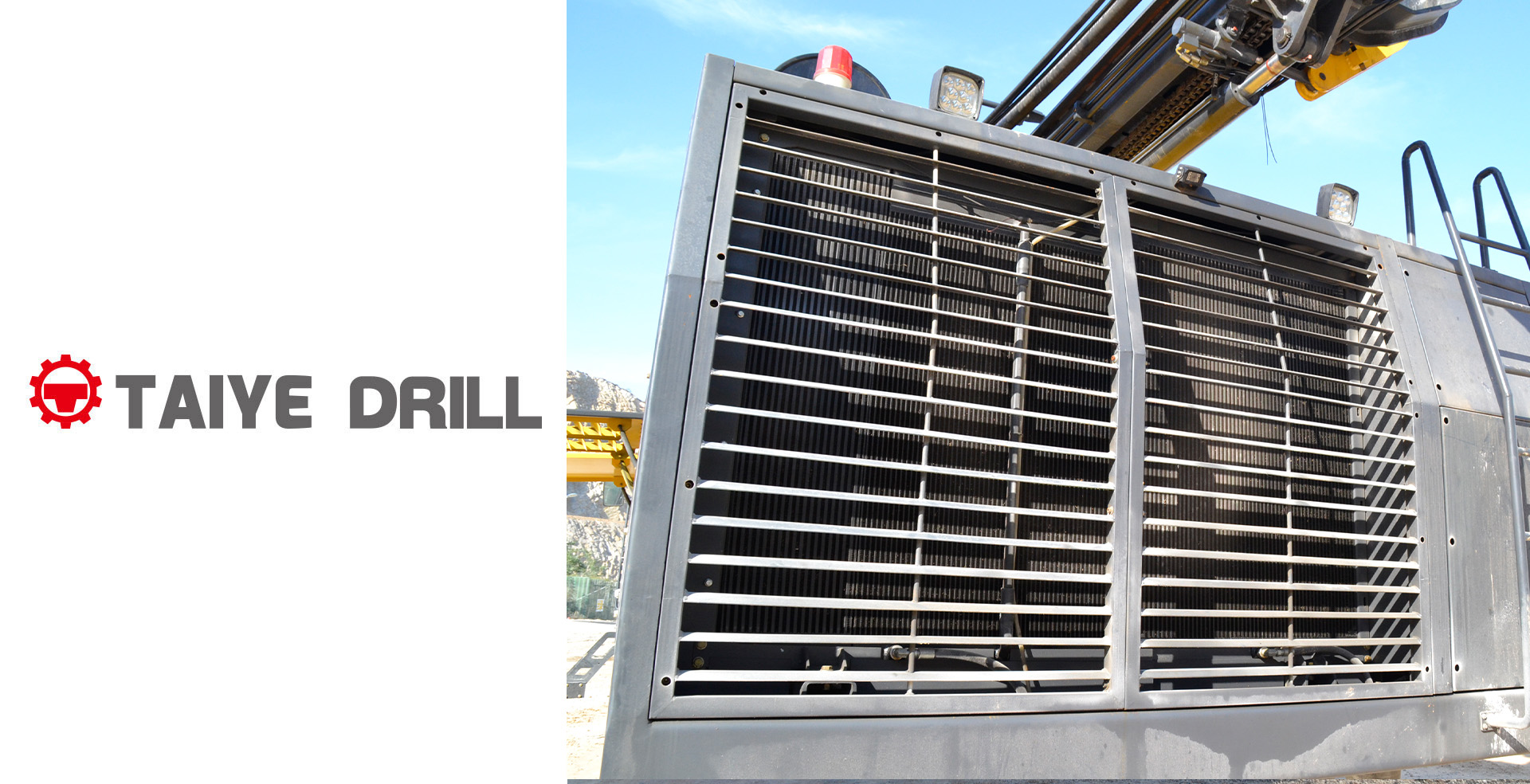

  • 1. Engine of TAIYE-D6-DTH full hydraulic crawler mounted large diameter blast hole surface down-the-hole drill rig

    The air compressor and the hydraulic oil pump are driven by an on-board diesel engine, which overcomes the disadvantages of traditional products that require towing cables and ducts, which results in time-consuming and labor-intensive shifting. It is more important to eliminate the loss of air pressure pipelines, leading to fuel efficiency and Increased perforation speed.


    Full hydraulic operation improves equipment operation reliability and reduces labor intensity.


  • 2. Automatic rod changer of TAIYE-D6-DTH full hydraulic surface down-the-hole (DTH) drilling rig

    The mechanical connection and unloading of drill rods reduce the difficulty of operation and save time. With three 8-meter drill rods, the drilling depth can reach 24 meters, which can meet the general needs of the mine.

  • 3. Cab of full hydraulic surface down-the-hole drilling rig

    The built-in operator's desk in the driver's cab is easy to operate, and it is equipped with air-conditioning to meet your needs in different environments.

Parameter of TAIYE-D6-DTH Full Hydraulic Crawler Mounted Large Diameter Blast Hole Surface Down-the-hole Drill Rig


Technical ParameterD6
Drilling hole diameter152-178mm
Drill rods114*8000mm
Maximum hole depth24000mm
Compressor power295Kw/2000Rpm
Compressor pressure2.1Mpa
displacement25.5m³/min
Drill Car Engine Power110Kw/2200Rpm
Turning speed0-80Rpm
Turning torque5750N.m
Lifting force40KN
Dimensions12000*2950*3500mm
Weight23000kg
Dust removal systemTwo dust removal schemes (dry or wet) for users to selection
