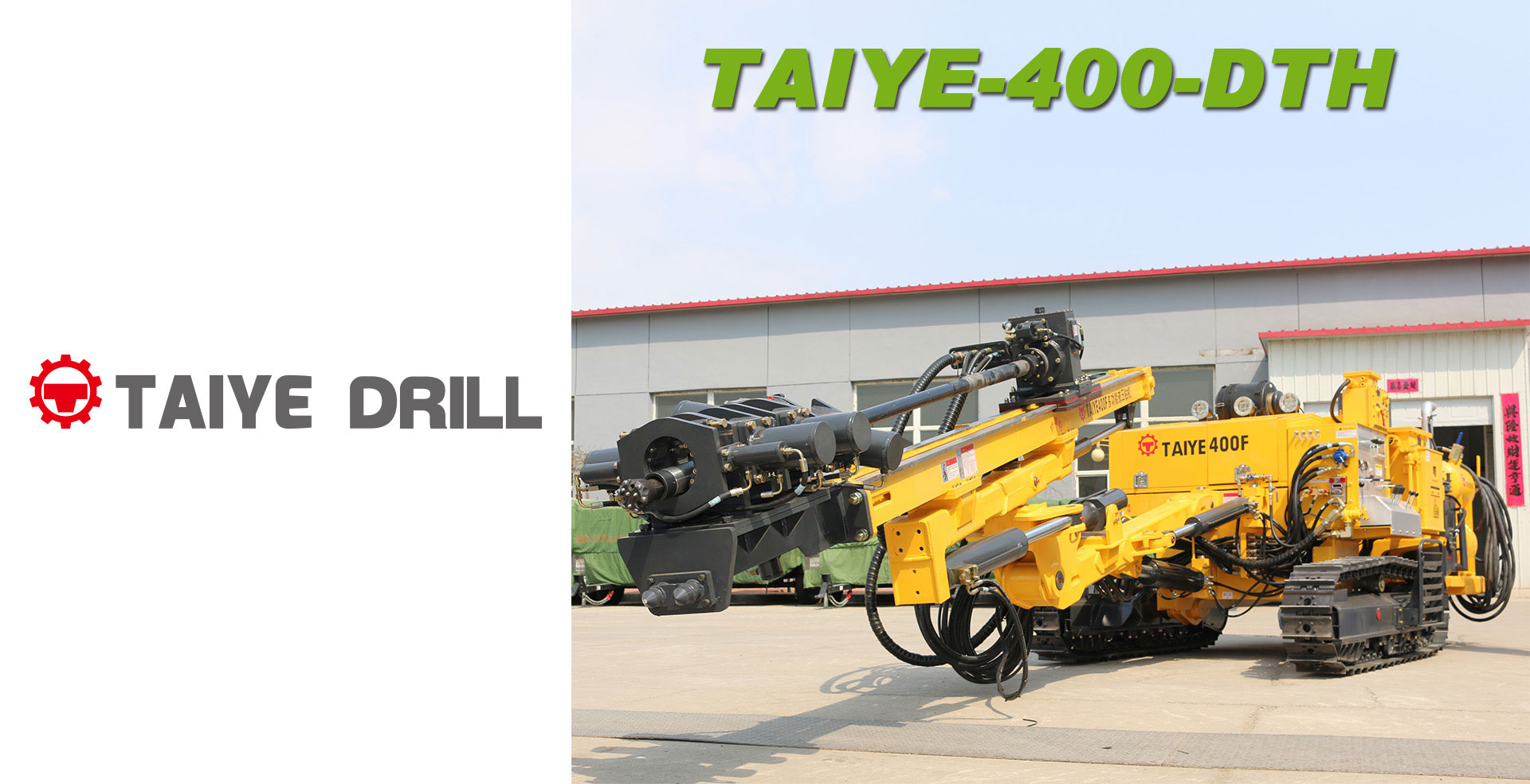

TAIYE-400F-DTH Separated Crawler Mounted Surface Hydraulic Down-the-Hole Drill Rig

TAIYE400F multi-function explosion-proof hydraulic drilling rig is equipped with the diesel-electric dual power system, two-speed rotary assembly, wet dust collector, automatic unloading rod, two-speed walking motor, etc. The drilling rig can be driven by a diesel engine to complete walking or drilling, and when there is electricity, a motor can also be used to complete walking or drilling.

It's an air rotary drill rig. Its main highlight is the wide range of operations, suitable for the excavation of hydropower, building materials, chemical industry, metallurgy and large and medium-sized earthwork, blast hole drilling in open pit mining pits, tunnel drilling, pipe shed construction, etc.

  • 1

    1. Explosion-proof motors

    TAIYE400F multi-function explosion-proof hydraulic drilling rig is operated by diesel engine or electric motor. The whole machine is processed by explosion-proof and equipped with an explosion-proof control system. When the gas concentration exceeds the standard, the whole machine is powered off and turned off to ensure safety.

  • 2

    2. Dual power system

    The machine uses a turbocharged water-cooled engine or a motor-driven hydraulic pump as the power source and uses the hydraulic system to realize the rig's walking, slewing, propulsion, automatic unloading, drilling arm and carriage swing and pitch. The air pressure is supplied by the air compressor to the impactor, and the drilling task is completed with high, medium and low air pressure.

Parameter of TAIYE-400F-DTH Separated Crawler Mounted Surface Hydraulic Down-the-Hole Drill Rig


Dimension  (mm)5950×2200×2400mm
weight(Kg)10000kg
Working pressure(Mpa)1.05-2.46Mpa
Drilling hole diameter(mm)90-165
Grade ability(°)30°(without traction),20°(with a compressor)
Sliding frame stroke(mm)2760mm
Double Speed MotorseriesTurning speed(rpm)0-120
Turning torque(N.m)2800
parallelTurning speed(rpm)0-60
Turning torque(N.m)5600
Lifting force(Kg.f)2000
Sliding frame swing(°)hole1:left 90°/right10°      hole2:right 90°/left10°
Drill boom swing(°)left/right45°
Drill boom pitching(°)horizontal 40°/25°
dust removal
wet
Engine powerKw70
Motor Power
功率
Kw55
