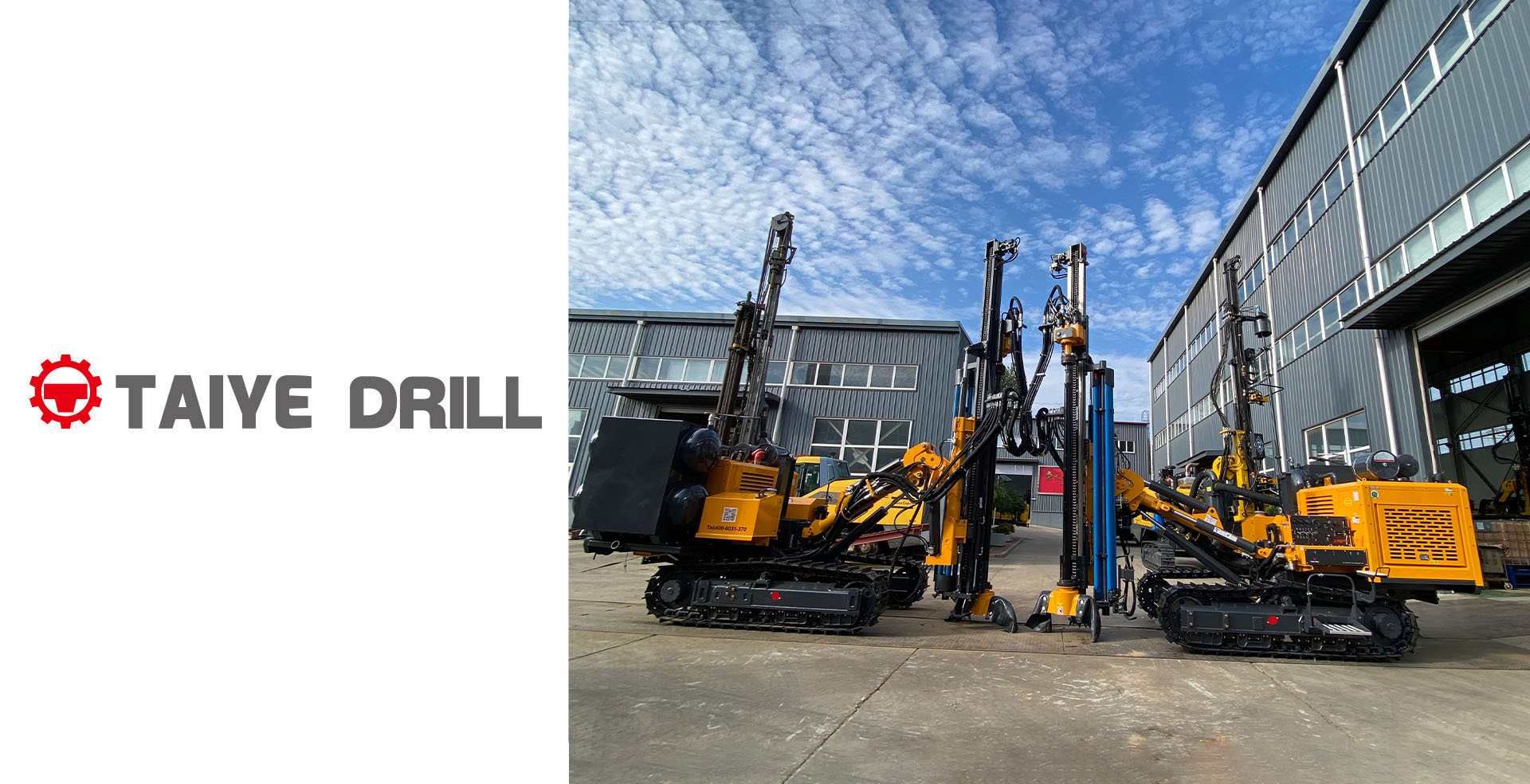

TAIYE-370A-DTH Separated Crawler Mounted Surface Anchoring Hydraulic Down-the-Hole Drill Rig

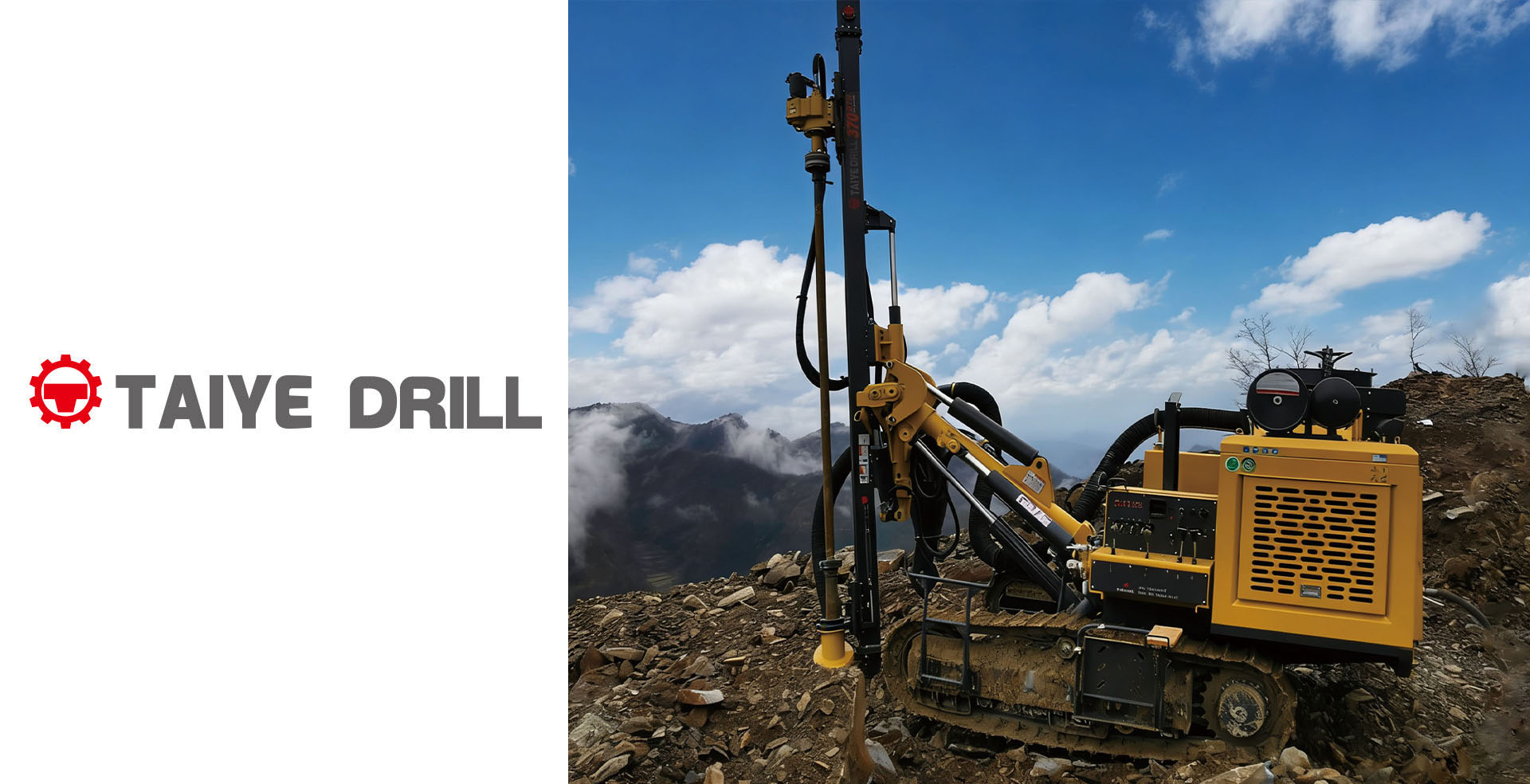

TAIYE370A-DTH is a multi-purpose internal combustion-driven crawler mounted hydraulic drilling rig, which is especially suitable for drilling big holes, the hole diameter range is 140-254mm. Mainly suitable for drilling blasting holes, anchor holes, grouting holes on open-pit mining, water conservancy, power station, transportation and other infrastructure construction, construction foundation excavation and another engineering. Under difficult geological conditions such as fractures and weathered rock formations, this machine can use casing and pipe to complete drilling operations.


The designed rotating torque is 3800Nm, hydraulic motor to ensure smooth and reliable operation; hydraulic cylinder & multi-row plate chain keep lifting and propulsion system is strong and powerful; the newly designed structure of the carriage, compensation mechanism, turning mechanism and drill arm are durable; special widened track shoes effectively enhanced the rig's capacity in muddy road conditions.


In addition to the DTH impactor, all power including slewing, propulsion, travel, swing motion and plunger pump is powered by an on-board internal combustion engine. The high-pressure designed pneumatic system maintains the excellent characteristics of the down-the-hole drill rig. The component that consumes compressed air for a drilling rig is only a down-the-hole impactor, so the parameter requirements for the air compressor are significantly reduced.

  • 1. Engine of hydraulic DTH drilling rig

    1. Engine of hydraulic DTH drilling rig

    The on-board internal combustion engine directly provides hydraulic driving force, avoiding energy conversion loss. Air compressors with corresponding specifications are configured according to the diameter of the perforation and the selected impactor model.


  • 2. Rotary power head of hydraulic DTH drilling rig

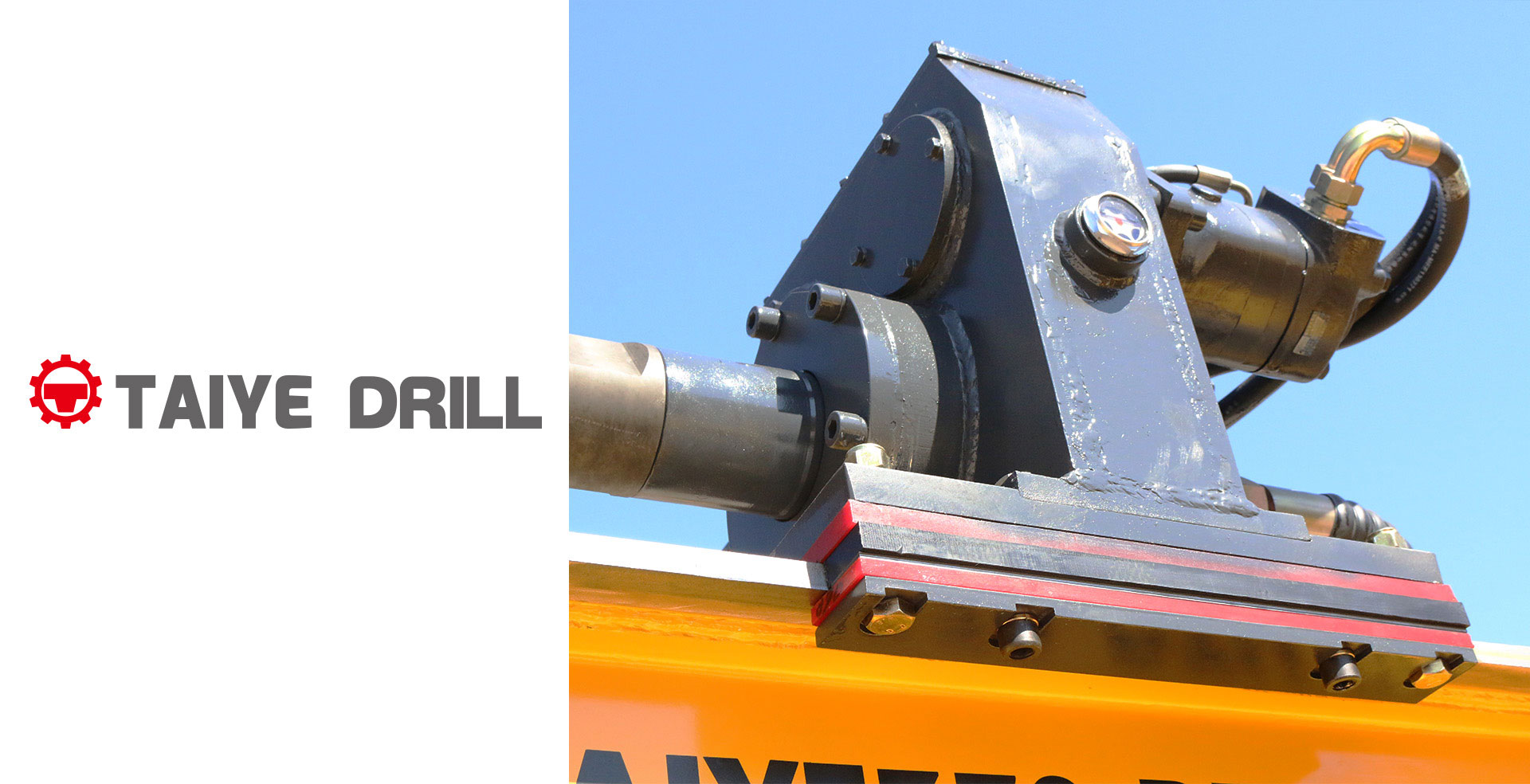

    2. Rotary power head of hydraulic DTH drilling rig

    Rotary power head driven by dual hydraulic motors,the torture can reach 3400Nm and can achieve 0-105RPM stepless speed regulation. Its performance has been verified by hundreds of drilling projects.


  • 3. Wet dust collector of hydraulic DTH drilling rig

    3. Wet dust collector of hydraulic DTH drilling rig

    The drilling rig can be delivered with dry or wet dust collectors or both.

  • 4. Oil cylinder and chain feeding system of hydraulic DTH drilling rig

    4. Oil cylinder and chain feeding system of hydraulic DTH drilling rig

    The oil cylinder chain propulsion system adopts a reinforced multi-row plate chain,  the lifting force can up to 6 tons and the propulsive forces can up to 3.5 tons.


Parameter of TAIYE-370A-DTH Separated Crawler Mounted Surface Anchoring Hydraulic Down-the-hole Drill Rig


Drilling hole diameter150-254mm
Working pressure10.5-24.6Mpa
Drilling hole depth80m
Turning torque3800N.M
Turning speed0-106Rpm
Maximum Lifting force40KN
Maximum propulsive force30KN
Single-pass depth3.4m
Sliding frame swingLeft 50°/Right 35°
Sliding frame pitching135°
Drilling boom swingLeft/Right 45
Drilling boom pitchinghorizontal 19°/60°
Grade ability30°
Engine ManufacturerYUCHAI Diesel etc
Rated power92KW
Dimension5750*2170*2300mm
Weight6400kg
