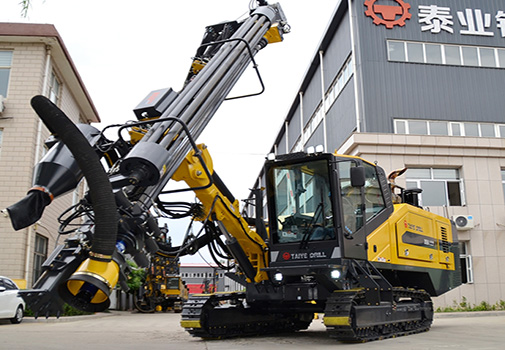

Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig

Our full hydraulic DTH drilling machine is equipped with a high air pressure air compressor, which is suitable for blasting perforation of soft rocks, medium hard rocks and hard rocks in open-pit mines, quarries and various steps, which can meet the requirements of high productivity. This DTH rig machine has Received extensive praise in the industry.

Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig Types of Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig for Sale

Drill Rig

Do You Have Any Questions?

Submit a business inquiry online. CONTACT US

Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig Know More about Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig

Features of full hydraulic surface down-the-hole (DTH) drilling rig include:


1. High reliability, easy maintenance and troubleshooting, and simple operation.

2. Safe and efficient, equipped with a safe cab, suitable for working in various weather conditions, the automatic rod changing device reduces the difficulty of operation, avoids the possible risks of manual rod changing, improves the degree of mechanization, and reduces labor costs.

3. Pay attention to the working environment. The two-stage dust removal device meets the requirements of on-site environmental protection, effectively controls dust emissions, and creates a safe and environmentally friendly working environment.


The compact structure and efficient system save fuel consumption and reduce production costs. In the future, the all-in-one hydraulic drilling rig will become a trend, leading the future of the industry.


Taiye is one of the best professional dth drilling rig manufacturers in China. We have recognized down-the-hole products in different applications around the world. We can not only provide a complete drill string, but also provide knowledge to help customers apply. We have the experience and expertise to provide our customers with a complete solution package.


Working Principle of Full Hydraulic Down the Hole (DTH) Drilling Rig

Full hydraulic down the hole (DTH) drilling rig is a drilling rig that uses oil pressure to drive and control all moving parts. In the process of adjusting the drill rod's forward and backward angle, adjusting the drill rod's forward and backward angle, adjusting the drill rod's forward and backward angle, and adjusting the drill rod's forward and backward angle. With the help of high-pressure variable oil pump and variable oil motor, this kind of drilling rig can complete stepless speed change, simplify the transmission mechanism, remove the gear box, reduce the weight of the drilling rig, and make full use of power.


Full Hydraulic Down the Hole (DTH) Drilling Rig Specification

According to the drilling diameter and mechanical weight, it can be divided into light DTH hydraulic drilling machine (drilling diameter is 70-120mm, drilling weight is hundreds of kg to 2-3T), medium DTH hydraulic drilling machine (drilling diameter is 150mm, drilling weight is 6-17t), heavy DTH hydraulic drilling machine (drilling diameter is 200mm, drilling weight is 20-40t), extra heavy DTH hydraulic drilling machine (drilling diameter is 250mm, drilling weight is more than 4T) 0 tons).


Types of Full Hydraulic Down the Hole (DTH) Drilling Rig Products

1) According to the different matching wind pressure, DTH drilling rig can be divided into low wind pressure DTH drilling rig (wind pressure is 7-10bar), medium wind pressure DTH drilling rig (air pressure is 10-15bar), high wind pressure DTH drilling rig (air pressure is 15-25bar).


2) According to the different use environment, it can be divided into open-pit DTH drilling rig and underground DTH drilling rig.

① Open pit DTH drilling rig

The open-pit DTH drilling rig is composed of impactor (or drill bit), rotary mechanism, lifting mechanism, pressure device, walking mechanism, slag discharge system, drilling frame and drill pipe. The drill uses drill pipe to drive pneumatic impactor and drill bit to rotate together, and uses piston impact drill bit of pneumatic impactor to break ore and rock. It is usually used to drill 80-250mm diameter blastholes in small and medium-sized mines.

②Underground DTH drilling rig

When drilling borehole with diameter less than 150 mm, 80-150 mm small diameter, underground DTH drilling rig can be used.

Underground DTH rig machine can be divided into self-propelled and non self-propelled according to whether there is a walking mechanism.


Applications of Full Hydraulic DTH Drilling Equipment

DTH drilling equipment is a new type of energy-saving and rock drilling equipment, which is widely used in large diameter blast hole drilling operation in small and medium-sized mines, road construction, national defense, water conservancy and stonework projects. It is also an essential DTH bore drilling machine for sale, which is designed for early mining of open-pit mines, especially suitable for rough and concave terrain where other drilling vehicles cannot operate normally.


Difference Between Full Hydraulic Down the Hole (DTH) Drilling Rig and Hydraulic Rotary Drilling Rig

1) Difference of working methods of the Hydraulic Drilling Rig for Sale

Hydraulic rotary drilling rig: All the actions of the hydraulic rotary drilling rig are driven by the hydraulic system. The main actions of the rotary drilling rig include: Shoe spreading, leg lifting, main and auxiliary winch lifting, boom luffing, drilling mast luffing, pressurized hydraulic cylinder (or winch pressure), power head rotation, turntable rotation, walking, etc. Its action is divided into drilling operation state and non drilling operation state.


Full hydraulic DTH drilling equipment: The diesel engine is used as the power to drive the hydraulic oil pump to form a high-pressure oil circuit. Through the relevant hydraulic control valves on the control console, the hydraulic motor and hydraulic cylinder are driven to complete various predetermined actions. When working, start the power to push the handle on the rotary control valve, and the pressure oil drives the rotary motor on the rotary machine to rotate through the rotary control valve. Push the handle on the travel control valve to realize the forward, backward, turning and other actions of the whole machine. Push the handle on the control valve of the oil cylinder to control the related oil cylinders to complete the pitch, swing, compensation of the guide rail and the pitch action of the drill arm. Push the handle on the propulsion control valve to realize the telescopic action of the propulsion cylinder, and drive the chain to feed and lift. When the propulsion oil cylinder shrinks and the rotator rotates forward, the ball valve on the air inlet pipeline is opened at the same time to supply the pressure air from the air compressor to the drill pipe and the impactor. The impactor works and blows the broken rock out of the ground, so as to realize the continuous feeding of the broken rock of the impactor and form the rock drilling.


2) Difference of applications of the Hydraulic Drilling Rig for Sale

Hydraulic rotary drilling rig: It is mainly suitable for the construction of sandy soil, cohesive soil, silty soil and other soil layers, and is widely used in the construction of cast-in-place pile, continuous wall, foundation reinforcement and other foundation.

Full hydraulic DTH drilling rig: It is one of the main construction equipment in mine, railway, highway, hydropower, coal and construction projects.




Full Hydraulic Surface Down-The-Hole (DTH) Drilling Rig
